Product Information

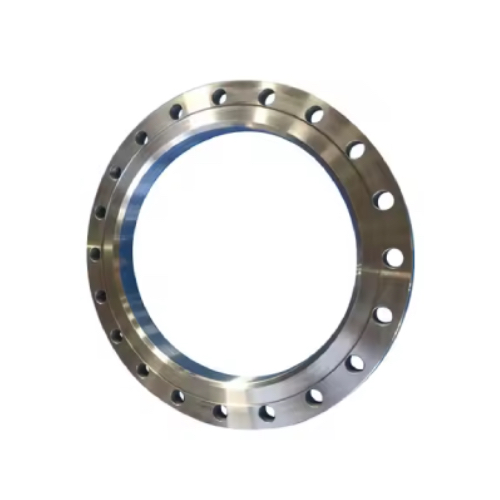

DN500 PN10 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 513.5mm (B1)
Flange overall diameter: 670mm (D)
PCD: 620mm (K)
Bolt Holes: 20 off 30mm diameter (L)
Flange Thickness: 38mm (C1)
Diameter of Raised Face (RF): 570mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification
Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO
Internal Reference:
CS-NB-FLA-500-RF-SO-P10-S235JR
