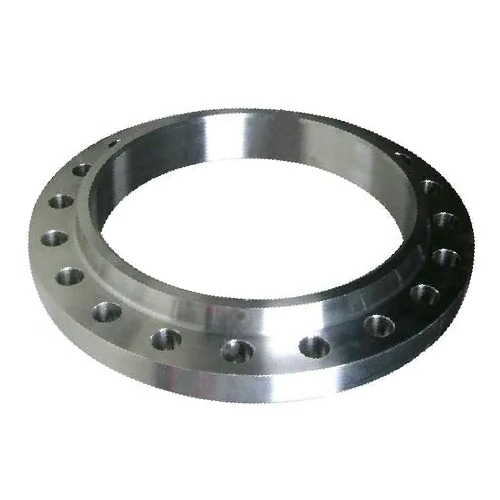

DN500 PN40 RF BOSSED SLIP ON FLANGE CS S235JR
Technical Specification
Product Code
CS-NB-FLA-500-RF-SOB-P40-S235JR
Outside Diameter (mm)
508.00mm
Weight
105.0 KG
Flange outside diameter: 785mm (D)
Flange inside diameter: 513.5mm (B1)
Flange thickness (C2): 57mm
Pitch Circle Diameter (PCD): 670mm (K)
Hub height: 90mm (H1)
Neck diameter: 576mm (N2)
Raised Face Diameter: 615mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 20 off 42mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification
Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB
Internal Reference:
CS-NB-FLA-500-RF-SOB-P40-S235JR
Specifications
| Outside Diameter (mm) | 508.00mm |
