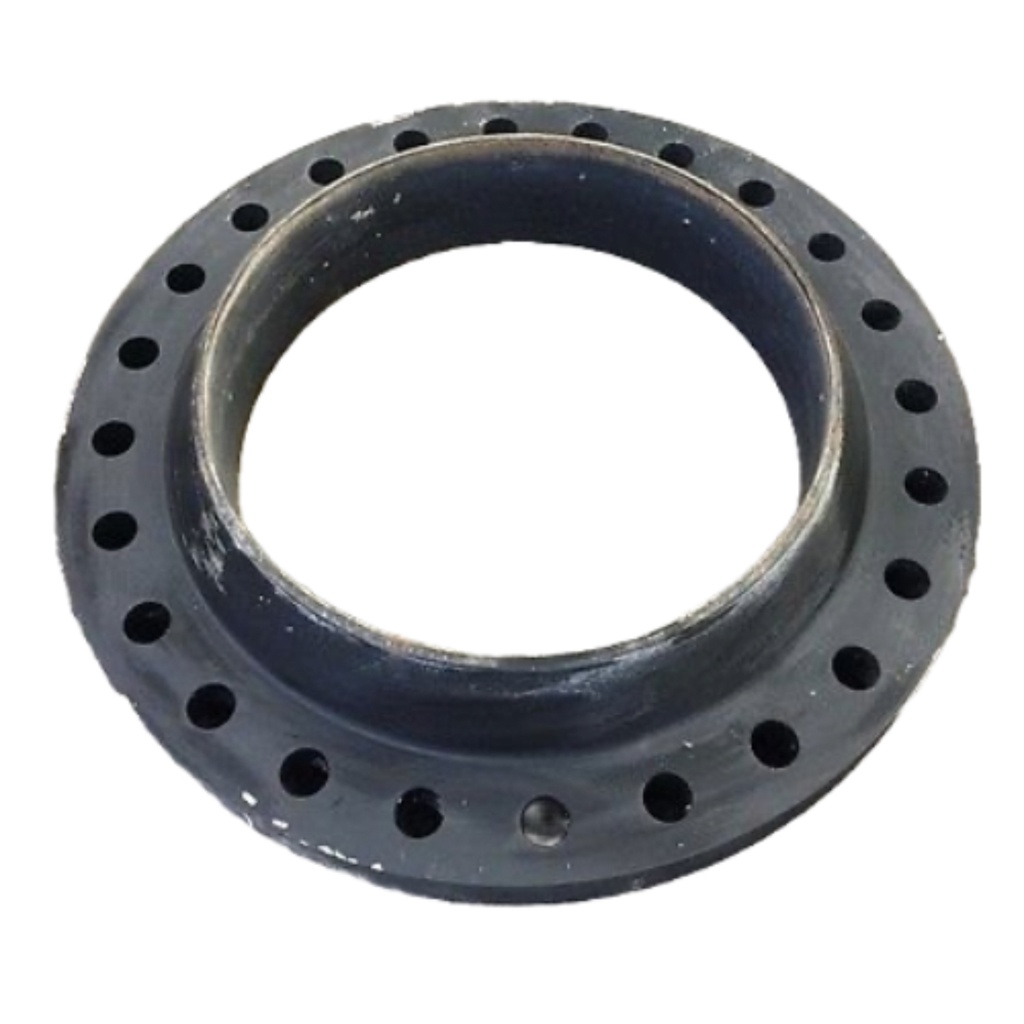

DN500 (20" NB) SCHEDULE 20 ASA150 WELD NECK FLANGE CS A105N

DN500 (20" NB) SCHEDULE 20 ASA150 WELD NECK FLANGE CS A105N

Technical Specification
Product Code
CS-NB-FLA-500-RF-WN-S20-A150-A105N
Size (Inch)
20"
Outside Diameter (mm)
508.00mm
Weight
250.0 KG
https://www.integraflow.co.uk/web/image/product.template/15759/image_1920?unique=292fe87
(0 review)

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Contact us for pricing

(£ 0.00 / each)
Product details
Weight 250.00 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 698.5mm
Flange thickness (C): 42.9mm
Hub length (X): 558.8mm
Neck height (A): 635.0mm
Pitch circle diameter (K): 635.0mm
Hub base diameter (Y): 144.5mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 584.2mm
Number of bolt holes: 20
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF
