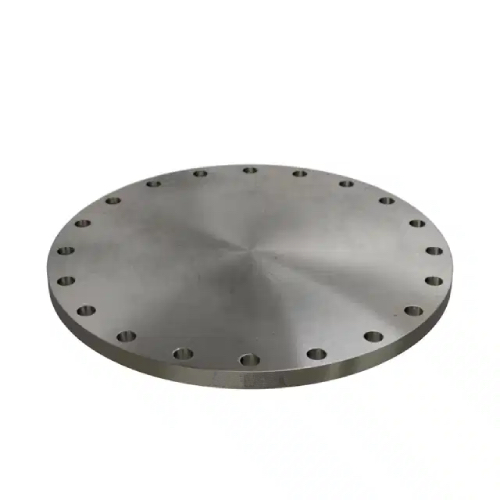

DN600 (24" NB) PN6 FF BLIND FLANGE CS S235 JR

DN600 (24" NB) PN6 FF BLIND FLANGE CS S235 JR

Technical Specification
Product Code
CS-NB-FLA-600-FF-BLA-P6-S235JR
Size (Inch)
24"
Outside Diameter (mm)
609.60mm
Weight
103.0 KG
https://www.integraflow.co.uk/web/image/product.template/15302/image_1920?unique=292fe87
(0 review)

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Contact us for pricing

(£ 0.00 / each)
Product details
Weight 103.00 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.


Flange overall diameter: 755mm (D)
PCD: 705mm (K)
Bolt Holes: 20 off 26mm diameter (L)
Flange Thickness: 32mm (C4)
Diameter of Flat Face (RF): 675mm (D1)
Height of Flat Face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Internal Reference: CS-NB-FLA-600-FF-BLA-P6-S235JR

Specifications

Size (Inch) 24"
Outside Diameter (mm) 609.60mm
