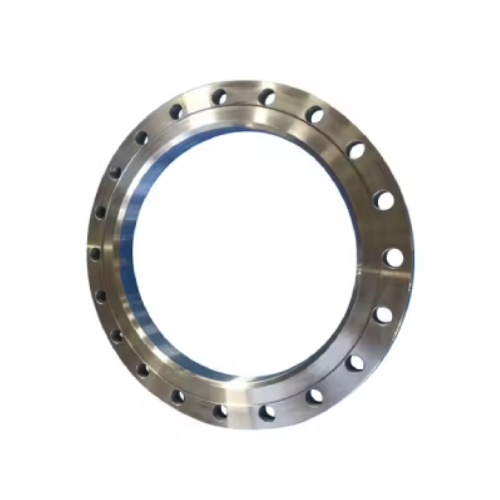

DN600 PN16 RF SLIP ON PLATE FLANGE CS S235JR
Technical Specification
Product Code
CS-NB-FLA-600-RF-SO-P16-S235JR
Outside Diameter (mm)
609.60mm
Weight
82.6 KG
Flange inside diameter of: 616.5mm (B1)
Flange overall diameter: 840mm (D)
PCD: 770mm (K)
Bolt Holes: 20 off 36mm diameter (L)
Flange Thickness: 55mm (C1)
Diameter of Raised Face (RF): 675mm (D1)
Height of raised face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification
Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
Internal Reference:
CS-NB-FLA-600-RF-SO-P16-S235JR
Specifications
| Outside Diameter (mm) | 609.60mm |
