Product Information

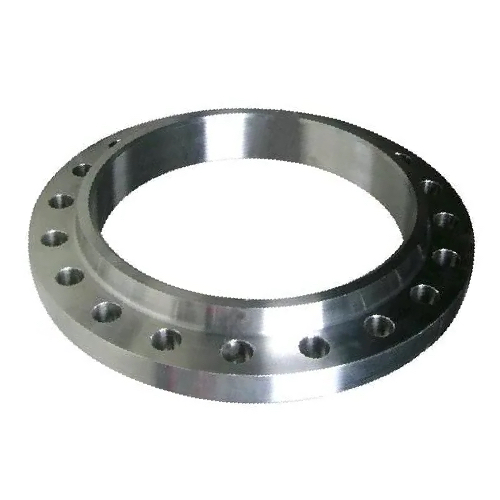

DN600 PN10 RF BOSSED SLIP ON FLANGE CS S235JR
Flange outside diameter: 780mm (D)
Flange inside diameter: 613.5mm (B1)
Flange thickness (C2): 40mm
Pitch Circle Diameter (PCD): 725mm (K)
Hub height: 75mm (H1)
Neck diameter: 658mm (N2)
Raised Face Diameter: 685mm (d1)
Height of Raised Face: 5mm (f1)
Bolt Holes: 20 off 30mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification
Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB
Internal Reference:
CS-NB-FLA-600-RF-SOB-P10-S235JR
