Flange outside diameter: 95mm (D)
Flange inside diameter: 22.0mm (B1)
Flange thickness (C2): 16mm
Pitch Circle Diameter (PCD): 65mm (K)
Hub height: 22mm (H1)
Neck diameter: 35mm (N2)
Raised Face Diameter: 45mm (d1)
Height of Raised Face: 2mm (f1)
Bolt Holes: 4 off 14mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Flange outside diameter: 105mm (D)
Flange inside diameter: 27.5mm (B1)
Flange thickness (C2): 18mm
Pitch Circle Diameter (PCD): 75mm (K)
Hub height: 26mm (H1)
Neck diameter: 45mm (N2)
Raised Face Diameter: 58mm (d1)
Height of Raised Face: 2mm (f1)
Bolt Holes: 4 off 14mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Flange outside diameter: 115mm (D)
Flange inside diameter: 34.5mm (B1)
Flange thickness (C2): 18mm
Pitch Circle Diameter (PCD): 85mm (K)
Hub height: 28mm (H1)
Neck diameter: 52mm (N2)
Raised Face Diameter: 68mm (d1)
Height of Raised Face: 2mm (f1)
Bolt Holes: 4 off 14mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Flange outside diameter: 140mm (D)
Flange inside diameter: 43.5mm (B1)
Flange thickness (C2): 18mm
Pitch Circle Diameter (PCD): 100mm (K)
Hub height: 30mm (H1)
Neck diameter: 60mm (N2)
Raised Face Diameter: 78mm (d1)
Height of Raised Face: 2mm (f1)
Bolt Holes: 4 off 18mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Flange outside diameter: 150mm (D)
Flange inside diameter: 49.5mm (B1)
Flange thickness (C2): 18mm
Pitch Circle Diameter (PCD): 110mm (K)
Hub height: 32mm (H1)
Neck diameter: 70mm (N2)
Raised Face Diameter: 88mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 4 off 18mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Flange outside diameter: 165mm (D)
Flange inside diameter: 61.5mm (B1)
Flange thickness (C2): 18mm
Pitch Circle Diameter (PCD): 125mm (K)
Hub height: 28mm (H1)
Neck diameter: 84mm (N2)
Raised Face Diameter: 102mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 4 off 18.0mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Flange outside diameter: 185mm (D)
Flange inside diameter: 77.5mm (B1)
Flange thickness (C2): 18mm
Pitch Circle Diameter (PCD): 145mm (K)
Hub height: 32mm (H1)
Neck diameter: 104mm (N2)
Raised Face Diameter: 122mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 4 OR 8* off 18.0mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Flange outside diameter: 200mm (D)
Flange inside diameter: 90.5mm (B1)
Flange thickness (C2): 20mm
Pitch Circle Diameter (PCD): 160mm (K)
Hub height: 34mm (H1)
Neck diameter: 118mm (N2)
Raised Face Diameter: 138mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 8 off 18.0mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Flange outside diameter: 220mm (D)
Flange inside diameter: 116.0mm (B1)
Flange thickness (C2): 20mm
Pitch Circle Diameter (PCD): 180mm (K)
Hub height: 40mm (H1)
Neck diameter: 140mm (N2)
Raised Face Diameter: 158mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 8 off 18.0mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Flange outside diameter: 250mm (D)
Flange inside diameter: 141.5mm (B1)
Flange thickness (C2): 22mm
Pitch Circle Diameter (PCD): 210mm (K)
Hub height: 44mm (H1)
Neck diameter: 168mm (N2)
Raised Face Diameter: 188mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 8 off 18.0mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Flange outside diameter: 285mm (D)
Flange inside diameter: 170.5mm (B1)
Flange thickness (C2): 24mm
Pitch Circle Diameter (PCD): 240mm (K)
Hub height: 44mm (H1)
Neck diameter: 195mm (N2)
Raised Face Diameter: 212mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 8 off 22.0mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

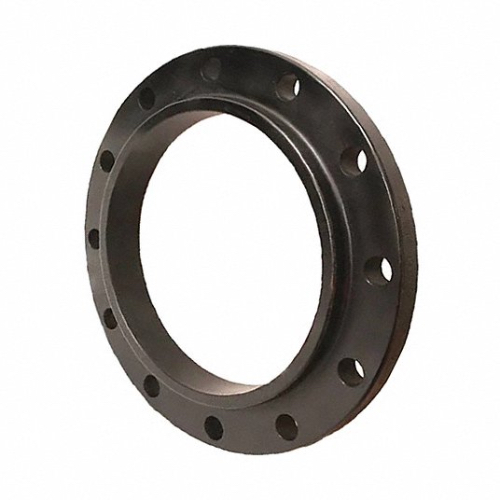

Flange outside diameter: 340mm (D)
Flange inside diameter: 221.5mm (B1)
Flange thickness (C2): 24mm
Pitch Circle Diameter (PCD): 295mm (K)
Hub height: 44mm (H1)
Neck diameter: 246mm (N2)
Raised Face Diameter: 268mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 8 off 22mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Flange outside diameter: 395mm (D)
Flange inside diameter: 276.5mm (B1)
Flange thickness (C2): 26mm
Pitch Circle Diameter (PCD): 350mm (K)
Hub height: 46mm (H1)
Neck diameter: 298mm (N2)
Raised Face Diameter: 320mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 12 off 22mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Flange outside diameter: 445mm (D)
Flange inside diameter: 327.5mm (B1)
Flange thickness (C2): 26mm
Pitch Circle Diameter (PCD): 395mm (K)
Hub height: 46mm (H1)
Neck diameter: 350mm (N2)
Raised Face Diameter: 370mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 12 off 22mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

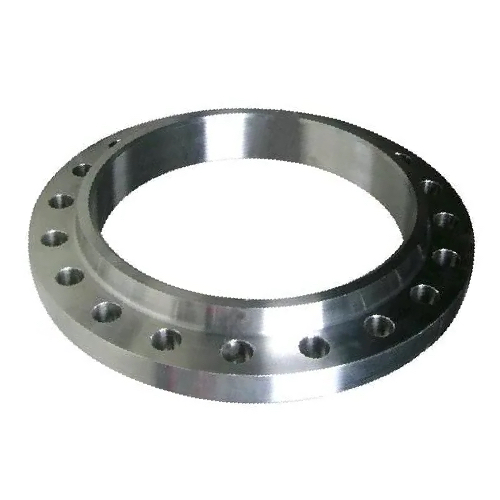

Flange outside diameter: 505mm (D)
Flange inside diameter: 359.5mm (B1)
Flange thickness (C2): 30mm
Pitch Circle Diameter (PCD): 460mm (K)
Hub height: 53mm (H1)
Neck diameter: 400mm (N2)
Raised Face Diameter: 430mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 16 off 22mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Flange outside diameter: 565mm (D)
Flange inside diameter: 411.0mm (B1)
Flange thickness (C2): 32mm
Pitch Circle Diameter (PCD): 515mm (K)
Hub height: 57mm (H1)
Neck diameter: 456mm (N2)
Raised Face Diameter: 482mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 16 off 26mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Flange outside diameter: 615mm (D)
Flange inside diameter: 462.0mm (B1)
Flange thickness (C2): 36mm
Pitch Circle Diameter (PCD): 565mm (K)
Hub height: 63mm (H1)
Neck diameter: 502mm (N2)
Raised Face Diameter: 532mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 20 off 26mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Flange outside diameter: 670mm (D)
Flange inside diameter: 513.5mm (B1)
Flange thickness (C2): 38mm
Pitch Circle Diameter (PCD): 620mm (K)
Hub height: 67mm (H1)
Neck diameter: 559mm (N2)
Raised Face Diameter: 585mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 20 off 26mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Flange outside diameter: 780mm (D)
Flange inside diameter: 613.5mm (B1)
Flange thickness (C2): 40mm
Pitch Circle Diameter (PCD): 725mm (K)
Hub height: 75mm (H1)
Neck diameter: 658mm (N2)
Raised Face Diameter: 685mm (d1)
Height of Raised Face: 5mm (f1)
Bolt Holes: 20 off 30mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB
