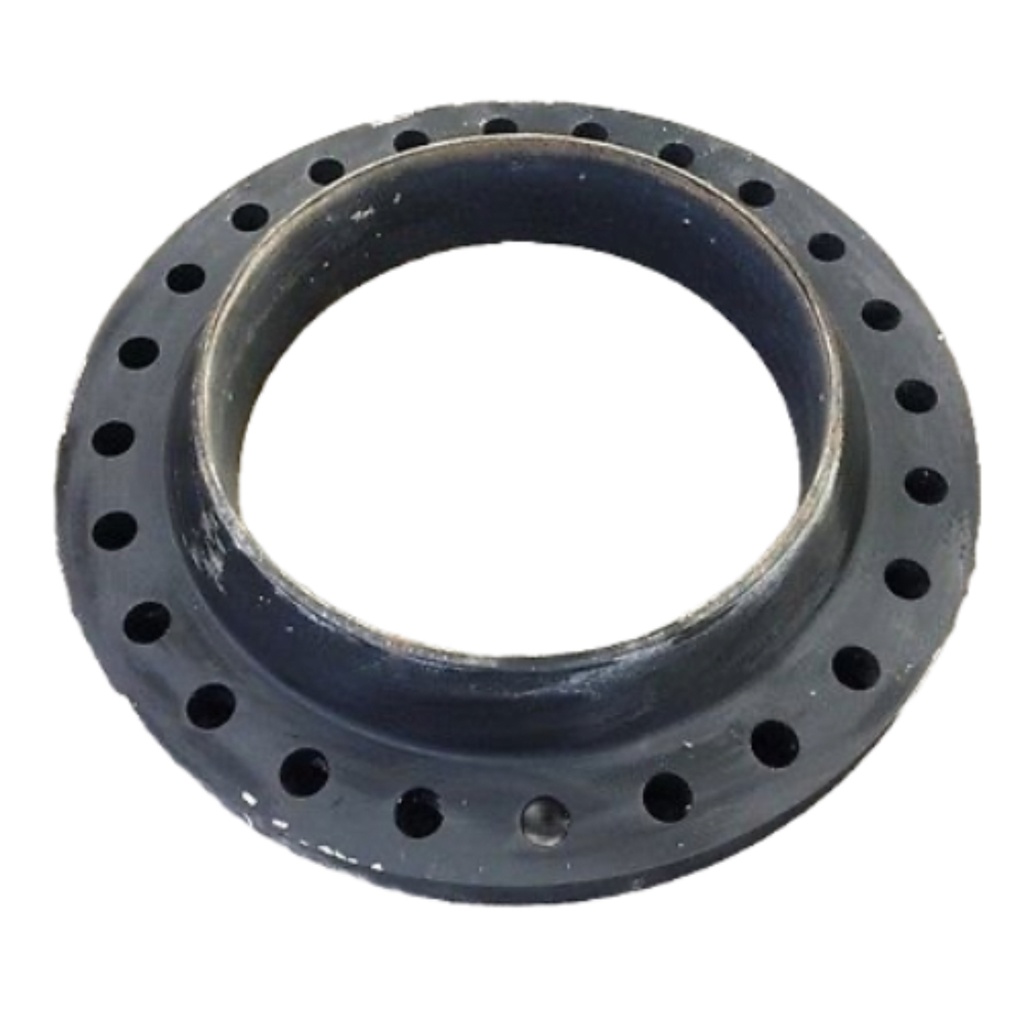

DN600 (24 NB) SCHEDULE 80 ASA300 WELD NECK FLANGE A105N
Outside diameter (O): 914.4mm
Flange thickness (C): 69.8mm
Hub height (X): 701.5mm
Length through hub (A): 609.6mm
Bolt circle diameter (K): 692.1mm
Overall height (Y): 168.1mm
Raised face thickness (RF): 1.5mm
Bore (B): 692.1mm
Number of bolt holes: 24
Bolt hole diameter: 41.1mm
Approx. weight: 238.0kg
Internal Reference:
CS-NB-FLA-600-RF-WN-S80-300-A105N
