Schedule 80

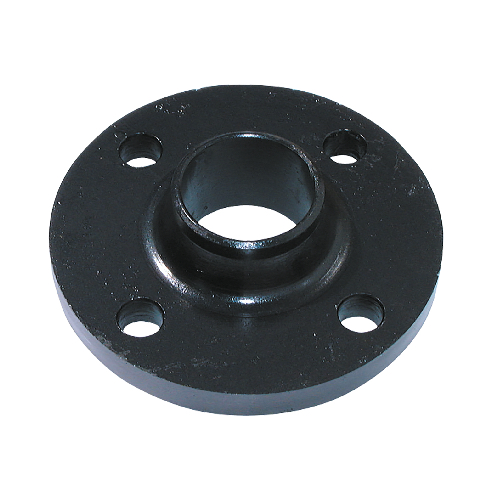

DN15 (1/2 NB) SCHEDULE 80 ASA300 WELD NECK FLANGE A105N

Outside diameter (O): 95.2mm
Flange thickness (C): 14.2mm
Hub height (X): 38.1mm
Length through hub (A): 21.3mm
Bolt circle diameter (K): 66.5mm
Overall height (Y): 52.3mm
Raised face thickness (RF): 1.5mm
Bore (B): 35.0mm
Number of bolt holes: 4
Bolt hole diameter: 15.7mm
Approx. weight: 0.9kg

Contact us for pricing 0.0 GBP

DN20 (3/4 NB) SCHEDULE 80 ASA300 WELD NECK FLANGE A105N

Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Hub height (X): 47.7mm
Length through hub (A): 26.6mm
Bolt circle diameter (K): 82.5mm
Overall height (Y): 57.1mm
Raised face thickness (RF): 1.5mm
Bore (B): 42.9mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.5kg

Contact us for pricing 0.0 GBP

DN25 (1 NB) SCHEDULE 80 ASA300 WELD NECK FLANGE A105N

Outside diameter (O): 123.9mm
Flange thickness (C): 17.5mm
Hub height (X): 53.8mm
Length through hub (A): 33.5mm
Bolt circle diameter (K): 88.9mm
Overall height (Y): 61.9mm
Raised face thickness (RF): 1.5mm
Bore (B): 50.8mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.9kg

Contact us for pricing 0.0 GBP

DN32 (1"1/4 NB) SCHEDULE 80 ASA300 WELD NECK FLANGE A105N

Outside diameter (O): 133.3mm
Flange thickness (C): 19.0mm
Hub height (X): 63.5mm
Length through hub (A): 42.1mm
Bolt circle diameter (K): 98.5mm
Overall height (Y): 65.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 63.5mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 2.6kg

Contact us for pricing 0.0 GBP

DN40 (1"1/2 NB) SCHEDULE 80 ASA300 WELD NECK FLANGE A105N

Outside diameter (O): 155.4mm
Flange thickness (C): 20.5mm
Hub height (X): 69.8mm
Length through hub (A): 48.2mm
Bolt circle diameter (K): 114.3mm
Overall height (Y): 68.3mm
Raised face thickness (RF): 1.5mm
Bore (B): 73.1mm
Number of bolt holes: 4
Bolt hole diameter: 22.3mm
Approx. weight: 3.3kg

Contact us for pricing 0.0 GBP

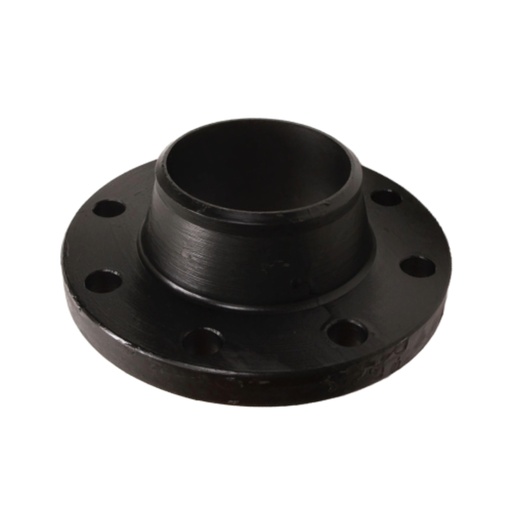

DN50 (2 NB) SCHEDULE 80 ASA300 WELD NECK FLANGE A105N

Outside diameter (O): 165.1mm
Flange thickness (C): 22.3mm
Hub height (X): 84.0mm
Length through hub (A): 60.4mm
Bolt circle diameter (K): 127.0mm
Overall height (Y): 69.8mm
Raised face thickness (RF): 1.5mm
Bore (B): 73.1mm
Number of bolt holes: 8
Bolt hole diameter: 19.0mm
Approx. weight: 4.0kg

Contact us for pricing 0.0 GBP

DN65 (2"1/2 NB) SCHEDULE 80 ASA300 WELD NECK FLANGE A105N

Outside diameter (O): 190.5mm
Flange thickness (C): 25.4mm
Hub height (X): 100.0mm
Length through hub (A): 73.1mm
Bolt circle diameter (K): 149.3mm
Overall height (Y): 76.2mm
Raised face thickness (RF): 1.5mm
Bore (B): 127.0mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 5.4kg

Contact us for pricing 0.0 GBP

DN80 (3 NB) SCHEDULE 80 ASA300 WELD NECK FLANGE A105N

Outside diameter (O): 209.5mm
Flange thickness (C): 28.4mm
Hub height (X): 117.3mm
Length through hub (A): 88.9mm
Bolt circle diameter (K): 168.1mm
Overall height (Y): 79.2mm
Raised face thickness (RF): 1.5mm
Bore (B): 127.0mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 7.4kg

Contact us for pricing 0.0 GBP

DN100 (4 NB) SCHEDULE 80 ASA300 WELD NECK FLANGE A105N

Outside diameter (O): 254.0mm
Flange thickness (C): 31.7mm
Hub height (X): 146.0mm
Length through hub (A): 114.3mm
Bolt circle diameter (K): 203.2mm
Overall height (Y): 85.8mm
Raised face thickness (RF): 1.5mm
Bore (B): 157.2mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 11.9kg

Contact us for pricing 0.0 GBP

DN125 (5 NB) SCHEDULE 80 ASA300 WELD NECK FLANGE A105N

Outside diameter (O): 279.4mm
Flange thickness (C): 35.0mm
Hub height (X): 177.8mm
Length through hub (A): 141.2mm
Bolt circle diameter (K): 234.9mm
Overall height (Y): 98.5mm
Raised face thickness (RF): 1.5mm
Bore (B): 157.2mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 15.2kg

Contact us for pricing 0.0 GBP

DN150 (6 NB) SCHEDULE 80 ASA300 WELD NECK FLANGE A105N

Outside diameter (O): 317.5mm
Flange thickness (C): 36.5mm
Hub height (X): 206.2mm
Length through hub (A): 168.4mm
Bolt circle diameter (K): 269.7mm
Overall height (Y): 108.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 215.9mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 20.2kg

Contact us for pricing 0.0 GBP

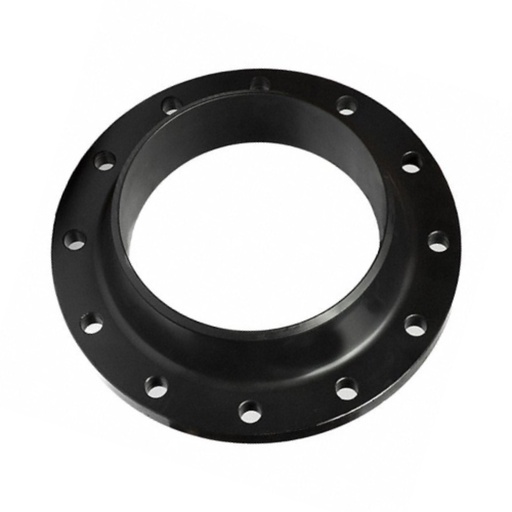

DN200 (8 NB) SCHEDULE 80 ASA300 WELD NECK FLANGE A105N

Outside diameter (O): 381.0mm
Flange thickness (C): 41.1mm
Hub height (X): 260.3mm
Length through hub (A): 219.2mm
Bolt circle diameter (K): 304.8mm
Overall height (Y): 111.2mm
Raised face thickness (RF): 1.5mm
Bore (B): 269.7mm
Number of bolt holes: 12
Bolt hole diameter: 25.4mm
Approx. weight: 31.0kg

Contact us for pricing 0.0 GBP

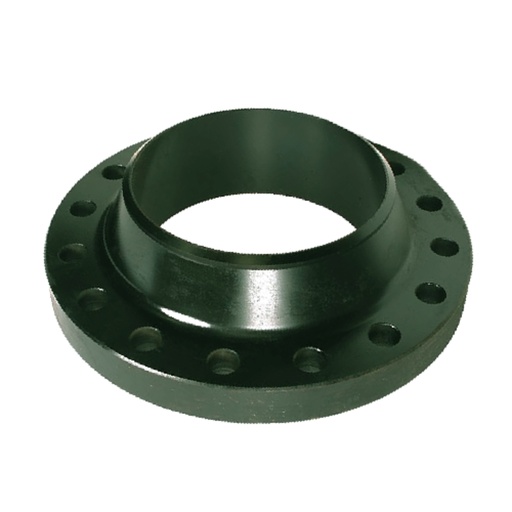

DN250 (10 NB) SCHEDULE 80 ASA300 WELD NECK FLANGE A105N

Outside diameter (O): 444.5mm
Flange thickness (C): 47.7mm
Hub height (X): 320.5mm
Length through hub (A): 273.0mm
Bolt circle diameter (K): 336.6mm
Overall height (Y): 117.3mm
Raised face thickness (RF): 1.5mm
Bore (B): 323.8mm
Number of bolt holes: 16
Bolt hole diameter: 28.4mm
Approx. weight: 44.3kg

Contact us for pricing 0.0 GBP

DN300 (12 NB) SCHEDULE 80 ASA300 WELD NECK FLANGE A105N

Outside diameter (O): 520.7mm
Flange thickness (C): 50.8mm
Hub height (X): 374.6mm
Length through hub (A): 323.8mm
Bolt circle diameter (K): 406.4mm
Overall height (Y): 130.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 381.0mm
Number of bolt holes: 16
Bolt hole diameter: 31.7mm
Approx. weight: 64.0kg

Contact us for pricing 0.0 GBP

DN350 (14 NB) SCHEDULE 80 ASA300 WELD NECK FLANGE A105N

Outside diameter (O): 584.2mm
Flange thickness (C): 53.8mm
Hub height (X): 425.4mm
Length through hub (A): 355.6mm
Bolt circle diameter (K): 444.5mm
Overall height (Y): 142.7mm
Raised face thickness (RF): 1.5mm
Bore (B): 412.7mm
Number of bolt holes: 20
Bolt hole diameter: 31.7mm
Approx. weight: 88.0kg

Contact us for pricing 0.0 GBP

DN400 (16 NB) SCHEDULE 80 ASA300 WELD NECK FLANGE A105N

Outside diameter (O): 647.7mm
Flange thickness (C): 57.1mm
Hub height (X): 482.6mm
Length through hub (A): 406.4mm
Bolt circle diameter (K): 476.3mm
Overall height (Y): 146.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 469.9mm
Number of bolt holes: 20
Bolt hole diameter: 35.0mm
Approx. weight: 113.0kg

Contact us for pricing 0.0 GBP

DN450 (18 NB) SCHEDULE 80 ASA300 WELD NECK FLANGE A105N

Outside diameter (O): 711.2mm
Flange thickness (C): 60.4mm
Hub height (X): 533.4mm
Length through hub (A): 457.2mm
Bolt circle diameter (K): 495.3mm
Overall height (Y): 158.7mm
Raised face thickness (RF): 1.5mm
Bore (B): 533.4mm
Number of bolt holes: 24
Bolt hole diameter: 35.0mm
Approx. weight: 134.0kg

Contact us for pricing 0.0 GBP

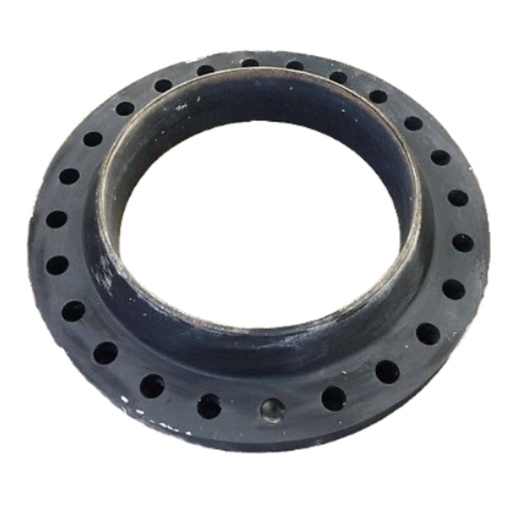

DN500 (20 NB) SCHEDULE 80 ASA300 WELD NECK FLANGE A105N

Outside diameter (O): 774.7mm
Flange thickness (C): 63.5mm
Hub height (X): 587.2mm
Length through hub (A): 508.0mm
Bolt circle diameter (K): 520.7mm
Overall height (Y): 162.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 584.2mm
Number of bolt holes: 24
Bolt hole diameter: 35.0mm
Approx. weight: 171.0kg

Contact us for pricing 0.0 GBP

DN600 (24 NB) SCHEDULE 80 ASA300 WELD NECK FLANGE A105N

Outside diameter (O): 914.4mm
Flange thickness (C): 69.8mm
Hub height (X): 701.5mm
Length through hub (A): 609.6mm
Bolt circle diameter (K): 692.1mm
Overall height (Y): 168.1mm
Raised face thickness (RF): 1.5mm
Bore (B): 692.1mm
Number of bolt holes: 24
Bolt hole diameter: 41.1mm
Approx. weight: 238.0kg

Contact us for pricing 0.0 GBP
