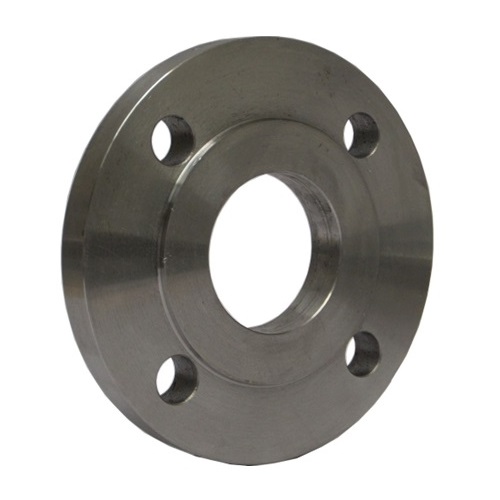

DN65 PN10/PN16 RF SLIP ON PLATE FLANGE CS S235JR
Technical Specification
Product Code
CS-NB-FLA-65-RF-SO-P10-P16-S235JR
Outside Diameter (mm)
73.00mm
Weight
3.16 KG
Flange inside diameter of: 77.5mm (B1)
Flange overall diameter: 185mm (D)
PCD: 145mm (K)
Bolt Holes: 4 OR 8* off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 110mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification
Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
Internal Reference:
CS-NB-FLA-65-RF-SO-P10-P16-S235JR
Specifications
| Outside Diameter (mm) | 73.00mm |
