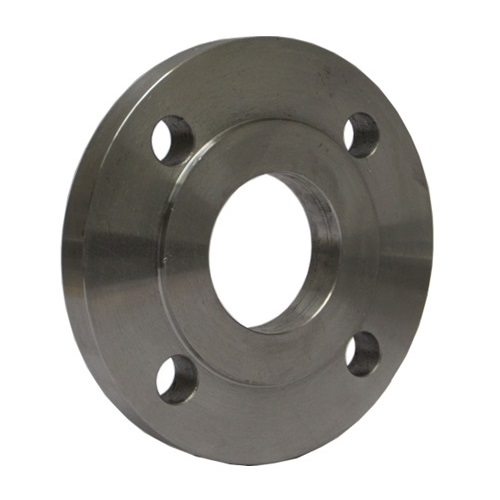

DN65 (2.1/2" NB) PN6 RF SLIP ON PLATE FLANGE CS S235 JR
Technical Specification
Product Code
CS-NB-FLA-65-RF-SO-P6-S235JR
Size (Inch)
2 1/2"
Outside Diameter (mm)
73.00mm
Weight
1.86 KG
Flange inside diameter of: 77.5mm (B1)
Flange overall diameter: 160mm (D)
PCD: 130mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 110mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification
Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
Internal Reference:
CS-NB-FLA-65-RF-SO-P6-S235JR
Specifications
| Size (Inch) | 2 1/2" |
| Outside Diameter (mm) | 73.00mm |
