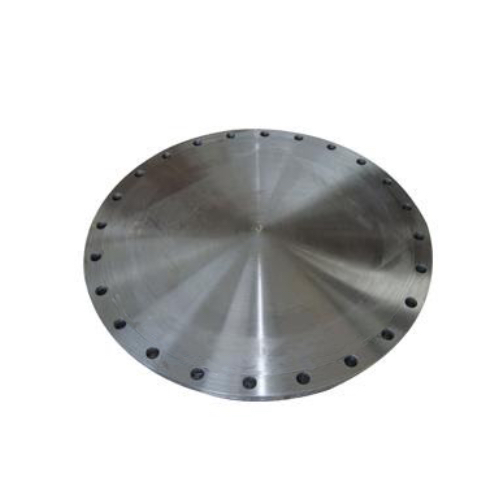

DN700 (28" NB) PN25 FF BLIND FLANGE CS S235 JR
Technical Specification
Product Code
CS-NB-FLA-700-FF-BLA-P25-S235JR
Size (Inch)
28"
Outside Diameter (mm)
711.20mm
Weight
175.2 KG
Flange OD (D): 960mm
Drilling (No. x Bolt Hole x L): 24 x M39 x 42mm
Pitch circle diameter (K): 875mm
Flange thickness (C1): 85mm
Raised face diameter (D1): 775mm
Raised face height (F1): 5mm
Material: S235 JR
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification
Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Internal Reference:
CS-NB-FLA-700-FF-BLA-P25-S235JR
Specifications
| Size (Inch) | 28" |
| Outside Diameter (mm) | 711.20mm |
