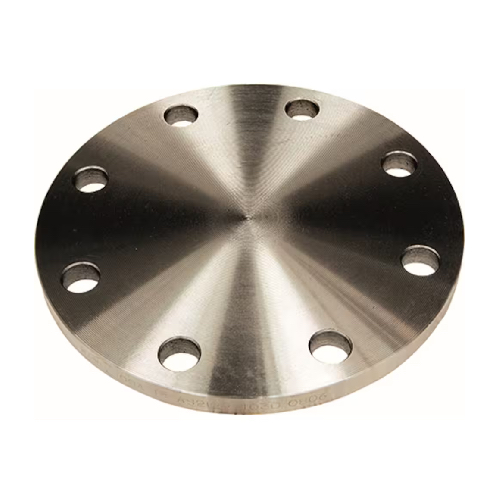

DN80 (3" NB) PN10 / PN16 FF BLIND FLANGE CS S235 JR
Flange OD (D): 200mm
Drilling (No. x Bolt Hole x L): 8 x M16 x 18mm
Pitch circle diameter (K): 160mm
Flange thickness (C1): 20mm
Raised face diameter (D1): 138mm
Raised face height (F1): 3mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification
Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Internal Reference:
CS-NB-FLA-80-FF-BLA-P16-S235JR
Specifications
| Size (Inch) | 3" |
| Outside Diameter (mm) | 88.90mm |
