Flange OD (D): 95mm
Drilling (No. x Bolt Holes x L): 4 x M12 x 14mm
Pitch circle diameter (K): 65mm
Flange thickness (C4): 16mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange OD (D): 105mm
Drilling (No. x Bolt Holes x L): 4 x M12 x 14mm
Pitch circle diameter (K): 75mm
Flange thickness (C4): 18mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange OD (D): 115mm
Drilling (No. x Bolt Holes x L): 4 x M12 x 14mm
Pitch circle diameter (K): 85mm
Flange thickness (C4): 18mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange OD (D): 140mm
Drilling (No. x Bolt Holes x L): 4 x M16 x 18mm
Pitch circle diameter (K): 100mm
Flange thickness (C4): 18mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange OD (D): 150mm
Drilling (No. x Bolt Holes x L): 4 x M16 x 18mm
Pitch circle diameter (K): 110mm
Flange thickness (C4): 18mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange OD (D): 165mm
Drilling (No. x Bolt Hole x L): 4 x M16 x 18mm
Pitch circle diameter (K): 125mm
Flange thickness (C1): 20mm
Raised face diameter (D1): 90mm
Raised face height (F1): 3mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange OD (D): 185mm
Drilling (No. x Bolt Hole x L): 8 x M16 x 18mm
Pitch circle diameter (K): 145mm
Flange thickness (C1): 20mm
Raised face diameter (D1): 110mm
Raised face height (F1): 3mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange OD (D): 200mm
Drilling (No. x Bolt Hole x L): 8 x M16 x 18mm
Pitch circle diameter (K): 160mm
Flange thickness (C1): 20mm
Raised face diameter (D1): 138mm
Raised face height (F1): 3mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange OD (D): 220mm
Drilling (No. x Bolt Hole x L): 8 x M16 x 18mm
Pitch circle diameter (K): 180mm
Flange thickness (C1): 22mm
Raised face diameter (D1): 148mm
Raised face height (F1): 3mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange OD (D): 250mm
Drilling (No. x Bolt Hole x L): 8 x M16 x 18mm
Pitch circle diameter (K): 210mm
Flange thickness (C1): 22mm
Raised face diameter (D1): 178mm
Raised face height (F1): 3mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange OD (D): 285mm
Drilling (No. x Bolt Hole x L): 8 x M20 x 22mm
Pitch circle diameter (K): 240mm
Flange thickness (C1): 24mm
Raised face diameter (D1): 202mm
Raised face height (F1): 3mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange OD (D): 340mm
Drilling (No. x Bolt Holes x L): 8 x M20 x 22mm
Pitch circle diameter (K): 295mm
Flange thickness (C4): 24~mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange OD (D): 395mm
Drilling (No. x Bolt Holes x L): 12 x M20 x 22mm
Pitch circle diameter (K): 350mm
Flange thickness (C4): 26mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange OD (D): 445mm
Drilling (No. x Bolt Holes x L): 12 x M20 x 22mm
Pitch circle diameter (K): 400mm
Flange thickness (C4): 26mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange OD (D): 505mm
Drilling (No. x Bolt Holes x L): 16 x M20 x 22mm
Pitch circle diameter (K): 460mm
Flange thickness (C4): 30mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange OD (D): 565mm
Drilling (No. x Bolt Holes x L): 16 x M24 x 26mm
Pitch circle diameter (K): 515mm
Flange thickness (C4): 32mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange OD (D): 615mm
Drilling (No. x Bolt Holes x L): 20 x M24 x 26mm
Pitch circle diameter (K): 656mm
Flange thickness (C4): 36mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange OD (D): 670mm
Drilling (No. x Bolt Holes x L): 20 x M24 x 26mm
Pitch circle diameter (K): 620mm
Flange thickness (C4): 38mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange OD (D): 780mm
Drilling (No. x Bolt Holes x L): 20 x M27 x 30mm
Pitch circle diameter (K): 725mm
Flange thickness (C4): 42mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange OD (D): 895mm
Drilling (No. x Bolt Holes x L): 24 x M27 x 30mm
Pitch circle diameter (K): 840mm
Flange thickness (C4): 50mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange OD (D): 1015mm
Drilling (No. x Bolt Holes x L): 24 x M30 x 33mm
Pitch circle diameter (K): 950mm
Flange thickness (C4): 56mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange OD (D): 1115mm
Drilling (No. x Bolt Holes x L): 28 x M30 x 33mm
Pitch circle diameter (K): 1050mm
Flange thickness (C4): 62mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange OD (D): 1230mm
Drilling (No. x Bolt Holes x L): 28 x M33 x 36mm
Pitch circle diameter (K): 1160mm
Flange thickness (C4): 70mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange OD (D): 1455mm
Drilling (No. x Bolt Holes x L): 32 x M36 x 39mm
Pitch circle diameter (K): 1380mm
Flange thickness (C4): 83mm
Material: S235 JR
Rating: PN10

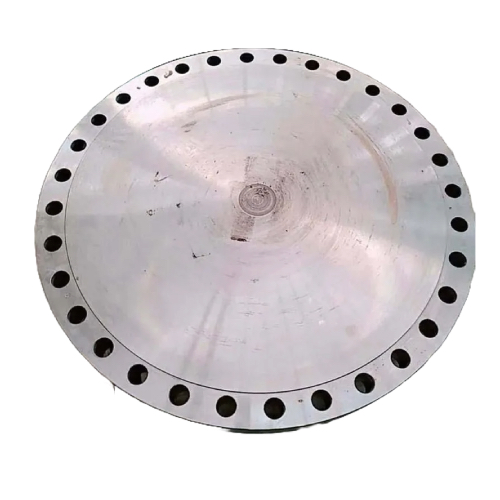

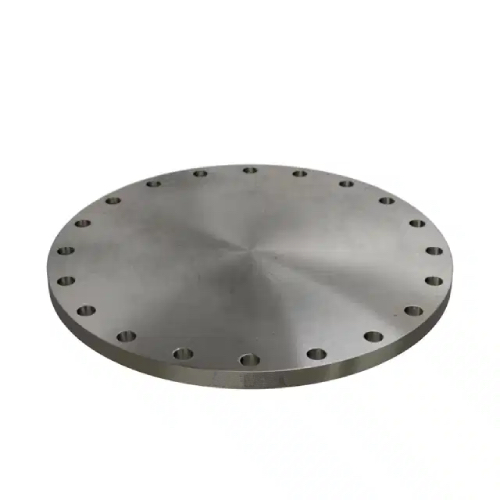

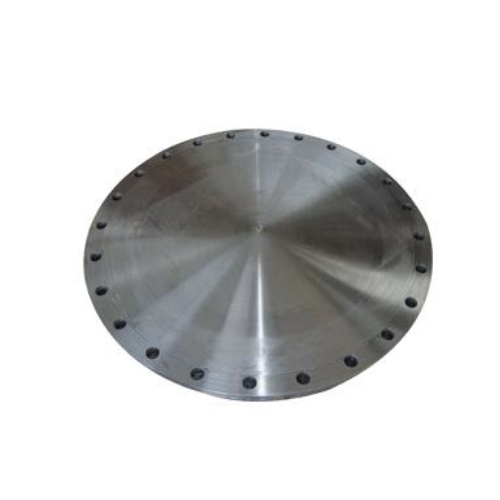

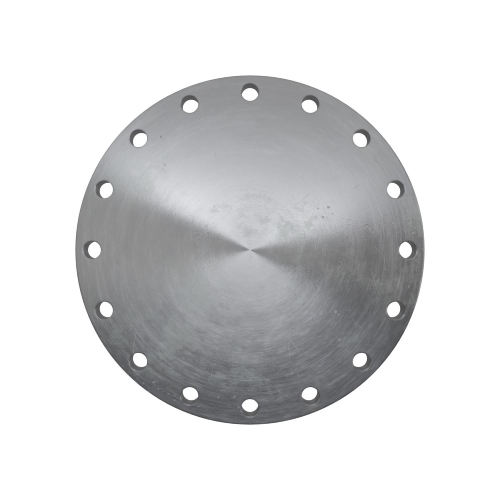

Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
