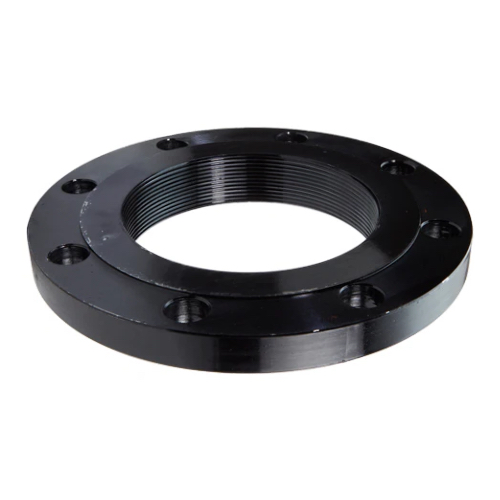

DN80 (3" NB) ASA300 3" NPT THREADED FLANGE CS A105N

DN80 (3" NB) ASA300 3" NPT THREADED FLANGE CS A105N

Technical Specification
Product Code
CS-NB-FLA-80-FF-SCR-300-A105N
Size (Inch)
3"
Outside Diameter (mm)
88.90mm
Weight
6.3 KG
https://www.integraflow.co.uk/web/image/product.template/15530/image_1920?unique=d4da88c
(0 review)

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Contact us for pricing

(£ 0.00 / each)
Product details
Weight 6.30 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 209.5mm
Hub diameter at base (C): 28.4mm
Length through hub (X): 117.3mm
Pitch circle diameter (K): 168.1mm
Raised face diameter (Y): 42.9mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 127.0mm
Bore diameter (Q): 92.2mm
Hub thickness (T): 31.7mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 300
Threaded: NPT
Type: Screwed flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA300, NPT, Carbon Steel, Raised Faced
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Internal Reference: CS-NB-FLA-80-FF-SCR-300-A105N

Specifications

Size (Inch) 3"
Outside Diameter (mm) 88.90mm
