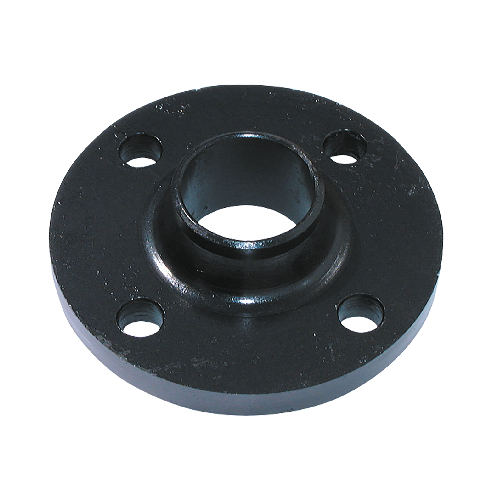

DN80 (3" NB) SCHEDULE 40 / STD WT ASA150 WELD NECK FLANGE CS A105N

DN80 (3" NB) SCHEDULE 40 / STD WT ASA150 WELD NECK FLANGE CS A105N

Technical Specification
Product Code
CS-NB-FLA-80-RF-WN-STD-S40-A150-A105N
Size (Inch)
3"
Outside Diameter (mm)
88.90mm
Weight
6.1 KG
https://www.integraflow.co.uk/web/image/product.template/15768/image_1920?unique=d4da88c
(0 review)

£ 34.08 34.08 GBP £ 34.08 Tax Excluded

Contact us for pricing

(£ 0.00 / each)
Product details
Weight 6.10 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 190.5mm
Flange thickness (C): 23.8mm
Hub length (X): 101.6mm
Neck height (A): 88.9mm
Pitch circle diameter (K): 152.4mm
Hub base diameter (Y): 69.8mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 127.0mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Internal Reference: CS-NB-FLA-80-RF-WN-STD-S40-A150-A105N

Specifications

Size (Inch) 3"
Outside Diameter (mm) 88.90mm
