DN100 (4" NB) ASA150 RF BLANK FLANGE CS A105N

DN100 (4" NB) ASA150 RF BLANK FLANGE CS A105N

Product code: CS-NB-FLA-RF-BLA-A150-100-A105N

(0 review)
Order other sizes
Product description

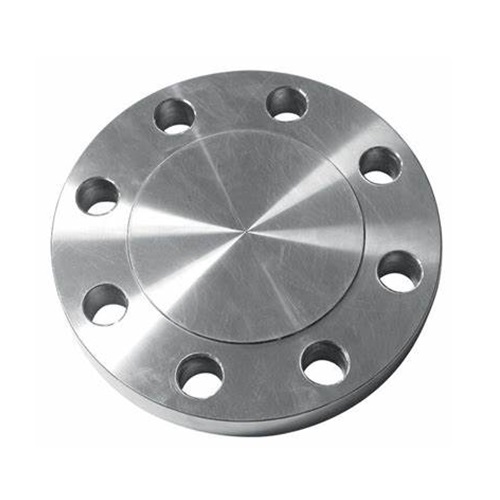

Blanking / Blind Flange
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.9 / ASA150
Flange Face: Raised
Bolt Holes: 8 off 19mm Ø
PCD: 190.5mm
Flange Diameter: 228.6mm
Flange Thickness: 23.8mm
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind, Blank, Blanking Flange, Mild steel, Carbon Steel, Termination, RFB

Flanges
  • Material
  • Grade
  • Outside Diameter (mm)
  • Nominal Size
  • Pressure Rating
  • Flange Face

Availability: Available to order

Add to cart Buy now
Price
£ 36.81 £ 36.81 (Tax excluded)

£ 0.00 / each
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Material Carbon Steel
Grade A105N
Outside Diameter (mm) 114.30mm
Nominal Size DN100
Pressure Rating Class 150
Flange Face Raised face (RF)
Contact Us
Material: Carbon Steel
Grade: A105N
Outside Diameter (mm): 114.30mm
Nominal Size: DN100
Pressure Rating: Class 150
Flange Face: Raised face (RF)

Internal Reference: CS-NB-FLA-RF-BLA-A150-100-A105N
