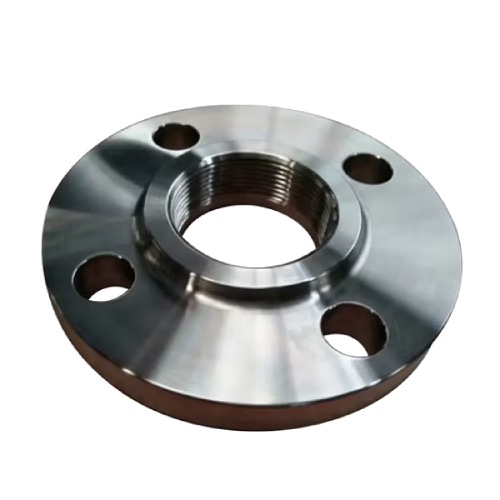

DN50 (2" NB) PN16 RF BSP THREADED BOSSED FLANGE CS S235 JR

DN50 (2" NB) PN16 RF BSP THREADED BOSSED FLANGE CS S235 JR

Product code: CS-NB-FLA-RF-BSP-P16-50-S235JR

(0 review)
Product description

Suits an outside diameter (OD) of: 60.3mm
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised
Connection: BSP Female Thread
Bolt Holes: 4 off to suit M16 Bolts
PCD: 125mm
Flange Diameter: 165mm
Flange Thickness: 18mm
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
BSP, Female, Threaded, Screwed, Bossed Flange, Mild Steel, Carbon Steel

Flanges
  • Material
  • Grade
  • Outside Diameter (mm)
  • Nominal Size
  • Connection / End
  • Pressure Rating
  • Flange Face

Availability: Call for prices

Call for prices
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Material Carbon Steel
Grade S235JR
Outside Diameter (mm) 60.30mm
Nominal Size DN50
Connection / End BSP
Pressure Rating PN16
Flange Face Raised face (RF)
Contact Us
Material: Carbon Steel
Grade: S235JR
Outside Diameter (mm): 60.30mm
Nominal Size: DN50
Connection / End: BSP
Pressure Rating: PN16
Flange Face: Raised face (RF)

Internal Reference: CS-NB-FLA-RF-BSP-P16-50-S235JR
