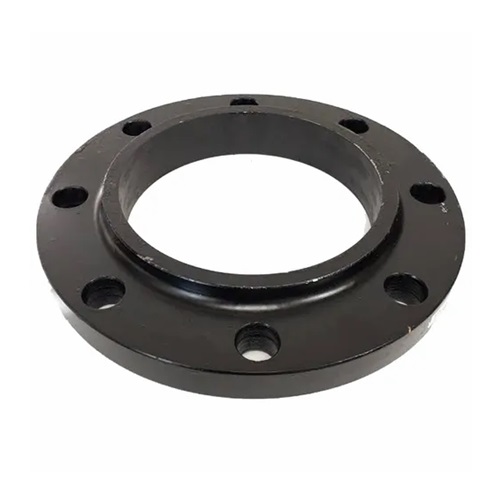

DN150 (6" NB) ASA150 RF SLIP ON FLANGE CS A105N
Flanges
Technical Specification
Product Code
CS-NB-FLA-RF-SO-A150-150-A105N
Size (Inch)
6"
Outside Diameter (mm)
168.30mm
Weight
7.5 KG
Slip on Bossed Flange
Suits an outside diamter of: 168.3mm
Material: CS
Grade: A105N
Standards: ASME B16.9 / ASA150
Flange Face: Raised
Bolt Holes: 8 off to suit 5/8"⌀ or M20 Bolts
PCD: 241.3mm
Flange Diameter: 279.4mm
Flange Thickness: 25.4mm
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Slip on, Bossed Flange, Weld on, Mild Steel, Carbon Steel
Internal Reference:
CS-NB-FLA-RF-SO-A150-150-A105N
Specifications
| Size (Inch) | 6" |
| Outside Diameter (mm) | 168.30mm |
