Product Information

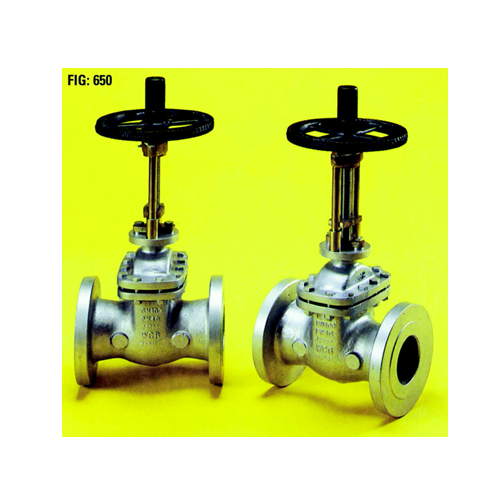

DN250 PETER SMITH FIG. 650 ANSI B16.1 FLANGED ANSI 300 CAST STEEL PARALLEL SLIDE GATE VALVE
Suits an outside diameter (OD) of: 273mm
Construction: Cast Steel Parallel Slide Gate
Body Material: Cast Steel
To suit flanges: ASA/ANSI 300
Face to Face: 457mm
Operation: Handwheel operated, Non-rising Stem
Design Standard: BS EN 1984
Internal Reference:
CS-VAL-250-PSG-PSM-650-A300
Specifications
| Pipework Standard | Nominal Bore |
| Size (Inch) | 10" |
| Outside Diameter (mm) | 273.0mm |
| Product Type | Gate Valve |
| Material | Cast Steel |
| Connection A | Flanged |
| Pressure Class | 300 psi |
| Flange Standard | ANSI 300 |
| Tags | |
|---|---|
| Tags | |
