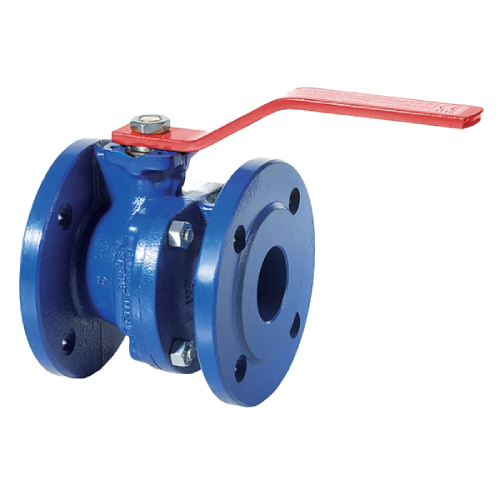

DN15 (1/2" NB) ASA150 2PC FLANGED DUCTILE IRON BALL VALVE DIRECT MOUND WITH RED LEVER

DN15 (1/2" NB) ASA150 2PC FLANGED DUCTILE IRON BALL VALVE DIRECT MOUND WITH RED LEVER

Product code: DI-VAL-BAL-A150-15-RED-2PC

(0 review)
Order other sizes
Product description
1/2" Ductile Iron Ball Valve – Direct Mount – Flanged ASA150

Face to face: 115mm

Direct mount with lever


Flanged ASA150 connections with ISO 5211 direct mount interface.
Ductile iron body with brass ball and stem.
Fitted with RPTFE seats and NBR O-rings.
Steel lever operated.

Face to face: DIN 3202 F4.
Pressure rating: ASA150.
Temperature range: -10°C to 100°C.
  • Material
  • Outside Diameter (mm)
  • Nominal Size
  • Connection / End
  • Pressure Rating

Availability: Call for prices

Call for prices
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Material Ductile Iron
Outside Diameter (mm) 21.30mm
Nominal Size DN15
Connection / End Flanged
Pressure Rating Class 150
Contact Us
Material: Ductile Iron
Outside Diameter (mm): 21.30mm
Nominal Size: DN15
Connection / End: Flanged
Pressure Rating: Class 150

Internal Reference: DI-VAL-BAL-A150-15-RED-2PC
