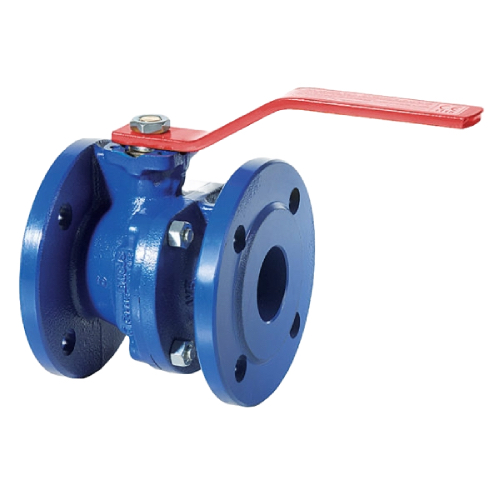

DN200 (8" NB) PN16 2PC FLANGED DUCTILE IRON BALL VALVE DIRECT MOUND WITH RED LEVER
Technical Specification
Product Code
DI-VAL-BAL-P16-200-RED-2PC
Size (Inch)
8"
Outside Diameter (mm)
219.10mm
Weight
93.0 KG
8" Ductile Iron Ball Valve – Direct Mount – Flanged PN16
Face to face: 400mm
Direct mount with lever
Flanged PN16 connections with ISO 5211 direct mount interface.
Ductile iron body with brass ball and stem.
Fitted with RPTFE seats and NBR O-rings.
Steel lever operated.
Face to face: DIN 3202 F5 (8”).
Pressure rating: PN16.
Temperature range: -10°C to 100°C.
Internal Reference:
DI-VAL-BAL-P16-200-RED-2PC
Specifications
| Size (Inch) | 8" |
| Outside Diameter (mm) | 219.10mm |
