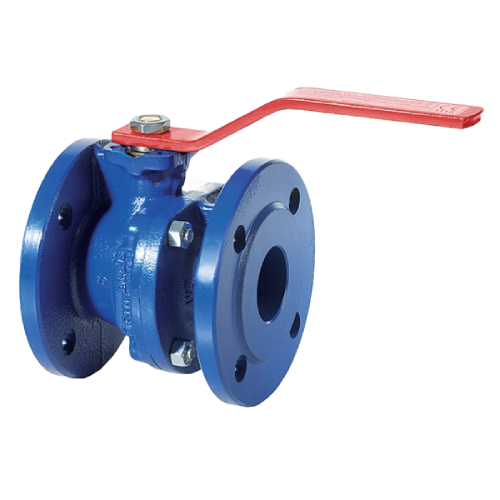

DN250 (10" NB) PN16 2PC FLANGED DUCTILE IRON BALL VALVE DIRECT MOUND WITH RED LEVER
Technical Specification
Product Code
DI-VAL-BAL-P16-250-RED-2PC
Size (Inch)
10"
Outside Diameter (mm)
273.00mm
Weight
180.0 KG
10" Ductile Iron Ball Valve – Direct Mount – Flanged PN16
Face to face: 450mm
Direct mount with lever
Flanged PN16 connections with ISO 5211 direct mount interface.
Ductile iron body with brass ball and stem.
Fitted with RPTFE seats and NBR O-rings.
Steel lever operated.
Face to face: DIN 3202 F5 (8”).
Pressure rating: PN16.
Temperature range: -10°C to 100°C.
Internal Reference:
DI-VAL-BAL-P16-250-RED-2PC
Specifications
| Size (Inch) | 10" |
| Outside Diameter (mm) | 273.00mm |
