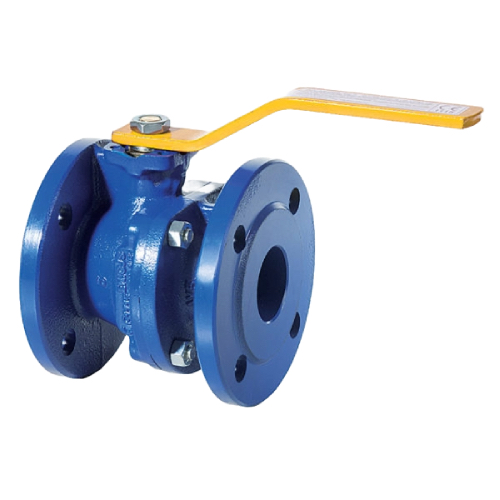

DN32 (1.1/4" NB) PN16 2PC FLANGED DUCTILE IRON BALL VALVE EN331 GAS APPROVED YELLOW LEVER
Technical Specification
Product Code
DI-VAL-BAL-P16-32-YEL-2PC
Size (Inch)
1.1/4"
Outside Diameter (mm)
42.20mm
Weight
5.8 KG
1.1/4" Ductile Iron Ball Valve – EN331 Gas Approved – Flanged PN16
Face to face: 130mm
Suitable for gas service.
EN331 approved design.
Flanged PN16 connections with ISO 5211 direct mount interface.
Ductile iron body with brass ball and stem.
Fitted with RPTFE seats and NBR O-rings.
Steel lever operated.
Face to face: DIN 3202 F4.
Pressure rating: PN16.
Temperature range: -10°C to 70°C.
Internal Reference:
DI-VAL-BAL-P16-32-YEL-2PC
Specifications
| Size (Inch) | 1.1/4" |
| Outside Diameter (mm) | 42.20mm |
