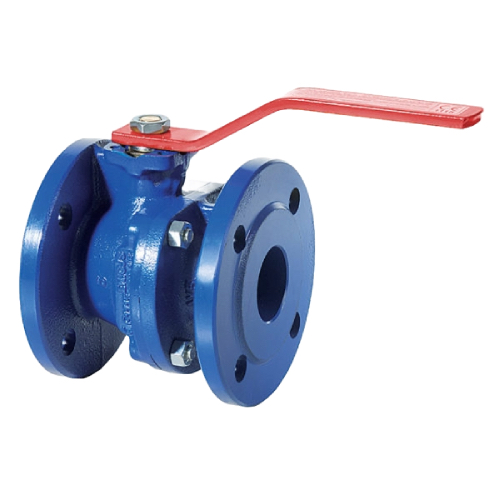

DN65 (2.1/2" NB) PN16 2PC FLANGED DUCTILE IRON BALL VALVE DIRECT MOUND WITH RED LEVER
Technical Specification
Product Code
DI-VAL-BAL-P16-65-RED-2PC
Size (Inch)
2 1/2"
Outside Diameter (mm)
73.00mm
Weight
10.5 KG
2.1/2" Ductile Iron Ball Valve – Direct Mount – Flanged PN16
Face to face: 170mm
Direct mount with lever
Flanged PN16 connections with ISO 5211 direct mount interface.
Ductile iron body with brass ball and stem.
Fitted with RPTFE seats and NBR O-rings.
Steel lever operated.
Face to face: DIN 3202 F4.
Pressure rating: PN16.
Temperature range: -10°C to 100°C.
Internal Reference:
DI-VAL-BAL-P16-65-RED-2PC
Specifications
| Size (Inch) | 2 1/2" |
| Outside Diameter (mm) | 73.00mm |
