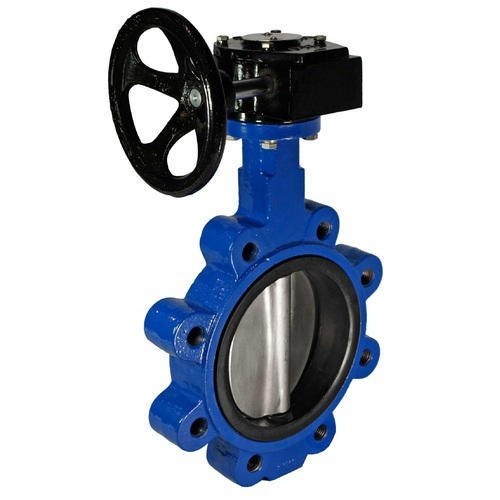

DN350 (14" NB) PN16 LUGGED & TAPPED GEARBOX OP. BUTTERFLY VALVE (EPDM/SS) DUCTILE IRON
Technical Specification
Product Code
DI-VAL-BFL-P16-LUG-350-EPD-SS-GBO
Size (Inch)
14"
Outside Diameter (mm)
355.60mm
Weight
65.0 KG
Suits Flange Size: DN350 PN16
Valve Type: Fully Lugged Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Gearbox
Pressure Rating: PN10
Temperature Range: -10°C to +120°C
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Approval: WRAS Approved
Flange Suitability: PN16
Note: Gearbox operation available for all sizes – please enquire.
Alternative terminology: Wafer Butterfly Valve, Lever Operated Butterfly Valve, Gear Operated Butterfly, Isolation Valve, Shut-Off Valve
Internal Reference:
DI-VAL-BFL-P16-LUG-350-EPD-SS-GBO
Specifications
| Size (Inch) | 14" |
| Outside Diameter (mm) | 355.60mm |
