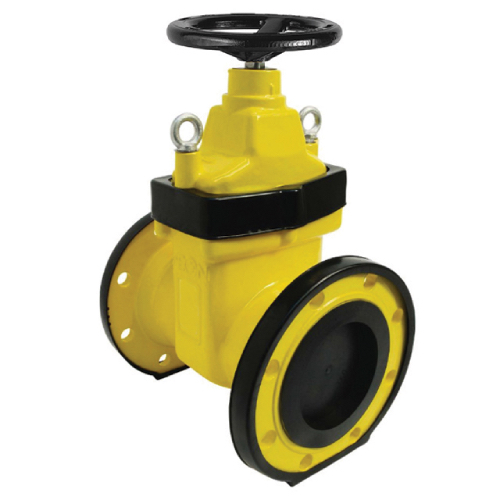

DN200 (8" NB) PN16 FLANGED DUCTILE IRON GAS APPROVED GATE VALVE BSI V7
Technical Specification
Product Code
DI-VAL-GAT-P16-200-HW-GAS
Size (Inch)
8"
Outside Diameter (mm)
219.10mm
Weight
65.3 KG
Flanged to suit: PN16
Body Material: Epoxy Coated Ductile Iron
Wedge Type: Double Seated NBR Encapsulated
Closure Direction: Clockwise Closing
Flange Drilling: PN16
Approvals: GIS/V7-1:2007, EN 13774
Temperature Range: -20°C to +60°C
Maximum Working Pressure: 7 Bar
Alternative terminology: NBR Gate Valve, Resilient Seated Gate Valve, Ductile Iron Gate, Shut-Off Valve, Manual Gate Valve, Clockwise Close
Internal Reference:
DI-VAL-GAT-P16-200-HW-GAS
Specifications
| Size (Inch) | 8" |
| Outside Diameter (mm) | 219.10mm |
