WRAS

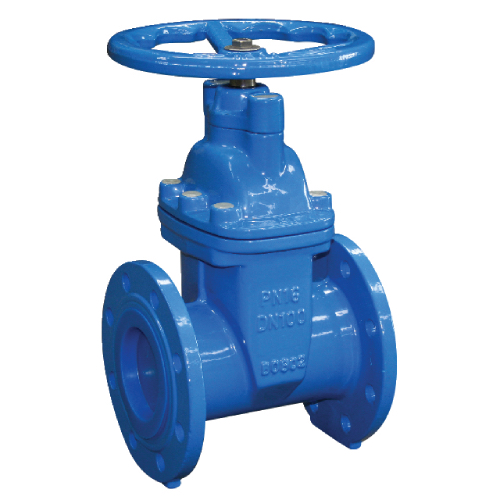

DN200 (8" NB) PN16 FLANGED RESILENT SEATDUCTILE IRON GATE VALVE MANUAL HANDWHEEL
Gate Valves
Technical Specification
Product Code
DI-VAL-GAT-P16-200-HW-RES
Size (Inch)
8"
Outside Diameter (mm)
219.10mm
Weight
70.0 KG
Flanged to suit: PN16
Body Material: Epoxy Coated Ductile Iron
Trim Material: EPDM Coated Resilient Seat
Flange Drilling: 8" PN16
Operation: Manual Handwheel (Clockwise Closing)
Face-to-Face Standard: 178mm BS 5150 (EN 1171)
Temperature Range: -10°C to +70°C
Pressure Rating: PN16
Alternative terminology: Flanged Gate Valve, EPDM Coated Resilient Seat Trim Gate, Isolation Valve, WRAS Approved Shut-Off Valve, Manual Gate Valve
Internal Reference:
DI-VAL-GAT-P16-200-HW-RES
Specifications
| Size (Inch) | 8" |
| Outside Diameter (mm) | 219.10mm |
