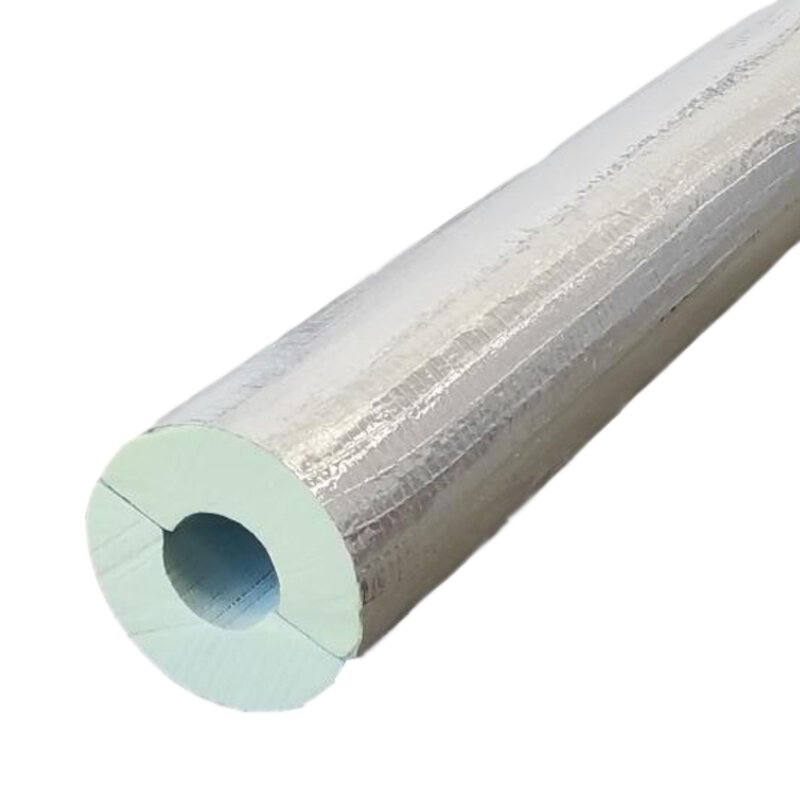

156mm ID X 50mm THICK PHENOLIC INSULATION PIPE SECTION
Technical Specification
Product Code
INS-ISO-PHE-156-50
Outside Diameter (mm)
156.00mm
Weight
0.2 KG
Suits an outside diameter of: 154mm
Insulation thickness: 50mm
Nominal Density: 40 kg/m3
Colour: Green
Thermal Conductivity: EN12667 0.025 max W/m·K at 10°C
Temperature Range: -50°C to +120°C
Compressive Strength: EN826
Closed Cell Content: EN4590 > 90%
Dimensional stability: EN1604 < 1.5%
Water absorption: EN1609 < 1.25kg/m2
KEY TECHNICAL FEATURES
EN 15804:2012+A1:2013
Environmental Product
Declaration (EPD) - BRE Global
Verified
BS EN14314 Phenolic foam
standard compliant
Fire and Smoke safe -
BL -s1, d0 tested to EN 13501-1
Thermally efficient - max aged
K value of 0.025 W/m·k tested to
EN12667
Environmentally safe - CFC &
HCFC free, GWP less than 5 Zero Ozone Depletion Potential
Bore coated in line with majorengineering specifications
Internal Reference:
INS-ISO-PHE-156-50
Specifications
| Outside Diameter (mm) | 156.00mm |
