Product Information

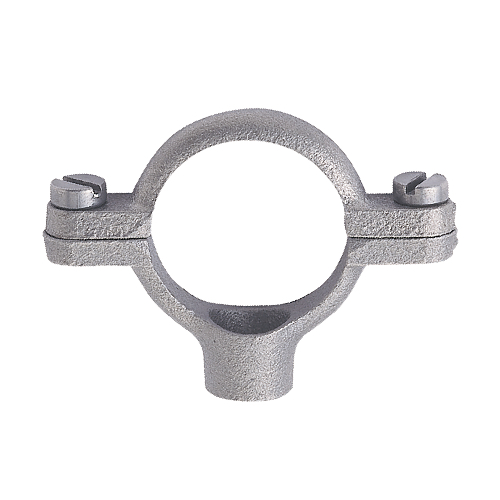

DN8 (1/4" NB) BSP GALVANISED MALLEABLE IRON 1/4" BSPP BOSSED MUNSEN PIPE RING
Suits pipe size: 1/4" NB
Suits an outside diameter (OD) of: 13.72mm
Material: Malleable Iron
Finish: HOT DIP GALVANISED (HDG)
Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1
Alternative terminology:
Malleable, Iron, Threaded, Pipe Ring, Munsen Ring, Pipe Clip, Munson, Tube Clip, Screwed, Fittings.
Internal Reference:
MI-NB-8B-RING-8-GAL
Specifications
| Pipework Standard | Nominal Bore |
| Size (Inch) | 1/4" |
| Product Category | Pipe Support |
| Outside Diameter (mm) | 13.72mm |
| Material | Malleable Iron |
| Connection A | M10 Boss |
| Connection B | Mechanical |
| Pressure Class | 150 psi |
| Construction | Cast |
| Finish | Galvanised |
| Product Type | Pipe Clip |
