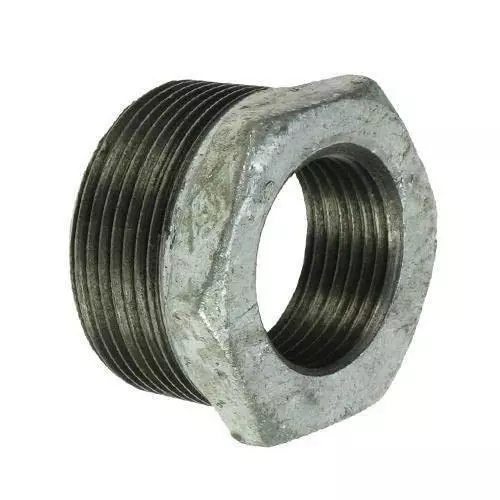

DN50 X 25 (2" X 1" NB) BSP GALVANISED MALLEABLE IRON REDUCING BUSH
Fittings
Technical Specification
Product Code
MI-NB-BSP-BUS-50-25-GAL
Size (Inch)
2"
Size (Inch)
1"
Outside Diameter (mm)
60.30mm
Weight
0.06 KG
Side 1 threaded: 2" BSPP Female
Suits 1 suits an outside diameter (OD) of: 60.3mm
Side 2 threaded: 1" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 33.4mm
Material: Malleable Iron
Finish: Galvanised
Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1
Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.
Internal Reference:
MI-NB-BSP-BUS-50-25-GAL
Specifications
| Size (Inch) | 2", 1" |
| Outside Diameter (mm) | 60.30mm |
