Product Information
%20BSP%20GALVANISED%20MALLEABLE%20IRON%20SOCKET?unique=4e89d3d)

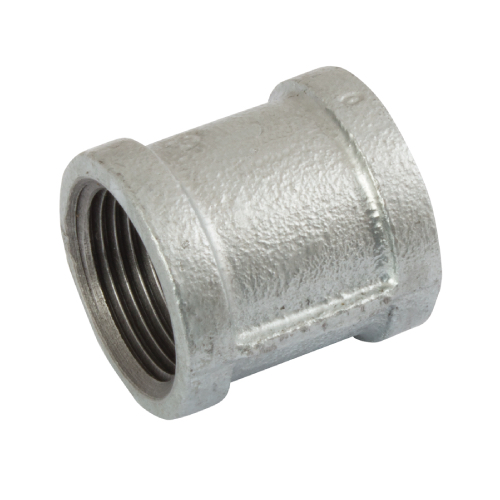

DN15 (1/2" NB) BSP GALVANISED MALLEABLE IRON SOCKET
Both sides threaded: 1/2" BSPP Female x Female
Suits an outside diameter (OD) of: 21.3mm
Material: Malleable Iron
Finish: Galvanised
Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1
Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.
Alternative terminology:
Malleable, Iron, Socket, Coupling, Connector, Straight, Threaded, Screwed, Figure 220, Fittings.
Internal Reference:
MI-NB-BSP-SOC-15-GAL
Specifications
| Pipework Standard | Nominal Bore |
| Size (Inch) | 1/2" |
| Outside Diameter (mm) | 21.30mm |
| Material | Malleable Iron |
| Product Type | Socket |
| Pressure Class | 150 psi |
| Product Category | Fitting |
| Finish | Galvanised |
| Connection A | Threaded (BSP) |
| Connection B | Threaded (BSP) |
| Construction | Cast |
| Tags | |
|---|---|
| Tags | |
