Product Information

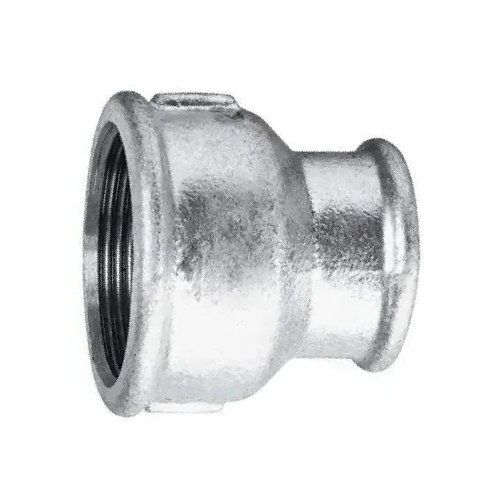

DN15 X 8 (1/2" X 1/4" NB) BSP GALVANISED MALLEABLE IRON REDUCING SOCKET
Side 1 threaded: 1/2" BSPP Female
Side 1 suits an outside diameter (OD) of: 21.3mm
Side 2 threaded: 1/4" BSPP Female
Side 2 suits an outside diameter (OD) of: 13.72mm
Material: Malleable Iron
Finish: Galvanised
Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1
Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.
Alternative terminology:
Malleable, Iron, Reducing Socket, Concentric, Coupling, Connector, Threaded, Screwed, Figure 240, Fittings.
Internal Reference:
MI-NB-BSP-SOC-RED-15-8-GAL
Specifications
| Pipework Standard | Nominal Bore |
| Size (Inch) | 1/2", 1/4" |
| Outside Diameter (mm) | 13.72mm, 21.30mm |
| Material | Malleable Iron |
| Product Type | Reducing Socket |
| Pressure Class | 150 psi |
| Product Category | Fitting |
| Finish | Galvanised |
| Connection A | Threaded (BSP) |
| Connection B | Threaded (BSP) |
| Construction | Cast |
| Tags | |
|---|---|
| Tags | |
