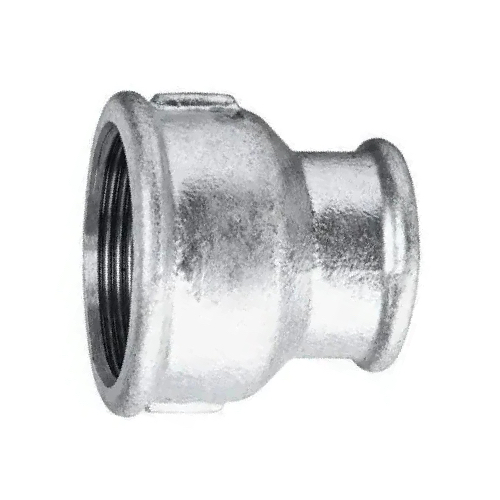

DN15 X 8 (1/2" X 1/4" NB) BSP GALVANISED MALLEABLE IRON REDUCING SOCKET
Side 1 threaded: 1/2" BSPP Female
Side 1 suits an outside diameter (OD) of: 21.3mm
Side 2 threaded: 1/4" BSPP Female
Side 2 suits an outside diameter (OD) of: 13.72mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)
Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1
Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.
Alternative terminology:
Malleable, Iron, Reducing Socket, Concentric, Coupling, Connector, Threaded, Screwed, Figure 240, Fittings.
| Size (Inch) | 1/2", 1/4" |
| Outside Diameter (mm) | 21.30mm |
Internal Reference:
MI-NB-BSP-SOC-RED-15-8-GAL
Specifications
| Size (Inch) | 1/2", 1/4" |
| Outside Diameter (mm) | 21.30mm |
