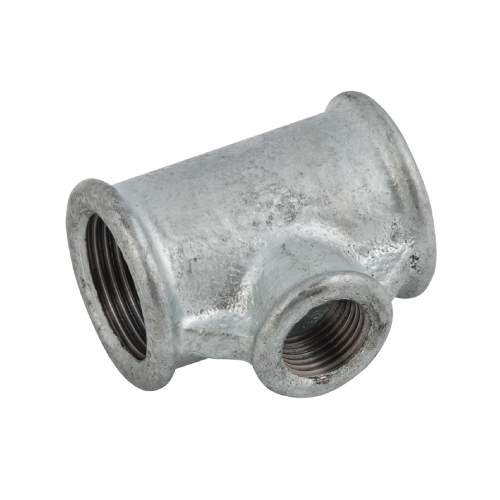

DN32 X 15 (1.1/4" X 1/2" NB) BSP GALVANISED MALLEABLE IRON REDUCING BRANCH TEE
Technical Specification
Product Code
MI-NB-BSP-TEE-RB-32-15-GAL
Size (Inch)
1.1/4"
Size (Inch)
1/2"
Outside Diameter (mm)
42.20mm
Run threads: 1.1/4" BSPP Female
Suits an outside diameter (OD) of: 42.4mm
Branch Thread: 1/2" BSPP Female
Suits an outside diameter (OD) of: 21.3mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)
Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1
Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.
Alternative terminology:
Malleable, Iron, Reducing Branch, Tee, Threaded, Screwed
Internal Reference:
MI-NB-BSP-TEE-RB-32-15-GAL
Specifications
| Size (Inch) | 1.1/4", 1/2" |
| Outside Diameter (mm) | 42.20mm |
