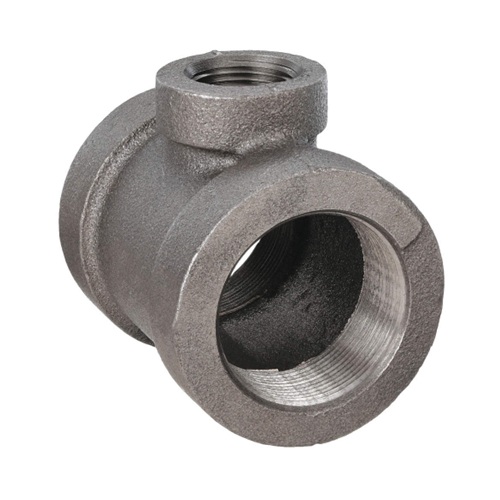

DN65 X 15 (2.1/2" X 1/2" NB) BSP BLACK MALLEABLE IRON REDUCING BRANCH TEE
Fittings
Technical Specification
Product Code
MI-NB-BSP-TEE-RB-65-15-BLK
Size (Inch)
2 1/2"
Size (Inch)
1/2"
Outside Diameter (mm)
73.00mm
Weight
0.16 KG
Run threads: 2.1/2" BSPP Female
Suits an outside diameter (OD) of: 76.2mm
Branch Thread: 1/2" BSPP Female
Suits an outside diameter (OD) of: 21.3mm
Material: Malleable Iron
Finish: Black Self Colour
Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1
Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.
Alternative terminology:
Malleable, Iron, Reducing Branch, Tee, Threaded, Screwed
Internal Reference:
MI-NB-BSP-TEE-RB-65-15-BLK
Specifications
| Size (Inch) | 2 1/2", 1/2" |
| Outside Diameter (mm) | 73.00mm |
