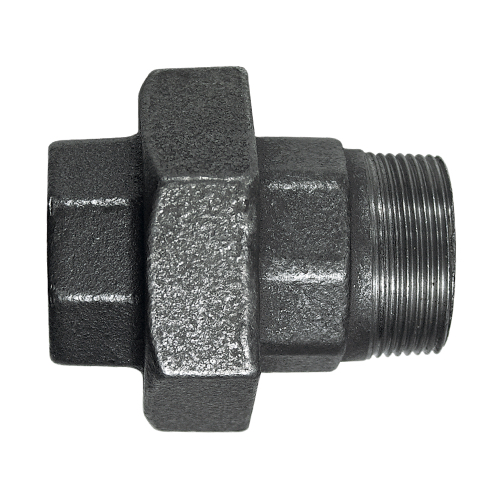

DN15 (1/2" NB) BSP BLACK MALLEABLE IRON MXF STREET UNION
Both sides threaded: 1/2" BSPT Male x BSPP Female
Suits an outside diameter (OD) of: 21.3mm
Material: Malleable Iron
Finish: Black Self Colour
Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1
Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.
Alternative terminology:
Malleable, Iron, Union, MXF, Street, Threaded, Screwed, Figure 341, Fittings.
Internal Reference:
MI-NB-BSP-UNI-MF-15-BLK
Specifications
| Pipework Standard | Nominal Bore |
| Product Category | Fitting |
| Size (Inch) | 1/2" |
| Outside Diameter (mm) | 21.30mm |
| Material | Malleable Iron |
| Connection A | Threaded (BSP) |
| Connection B | Threaded (BSP) |
| Pressure Class | 150 psi |
| Construction | Cast |
| Product Type | Union |
