Part of our Pipes and Tubes Range

Outside Diameter (OD): 165.1mm
Wall Thickness (WT): 5mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 19.7kg
Construction: Welded
Finish: Hot Dip Galvanised
Ends: Plain both ends
Certification: 2.1 Material Certification

Part of our Pipes and Tubes Range

Outside Diameter (OD): 165.1mm
Wall Thickness (WT): 5mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 19.7kg
Construction: Welded
Finish: Red Oxide Painted
Ends: Plain Both Ends

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.



Part of our Pipes and Tubes Range

Outside Diameter (OD): 165.1mm
Wall Thickness (WT): 5mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 19.7kg
Construction: Welded
Finish: Self Colour / Black 'as is' Finish
Ends: Plain both ends

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Pipes and Tubes Range

Outside Diameter (OD): 165.1mm
Wall Thickness (WT): 5mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 20.4kg
Construction: Welded
Finish: Hot Dip Galvanised
Ends: Threaded BSPT both ends with 1x BSP Socket

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler SysteMild Steel / Carbon Steel Pipe.

Alternative terminology:
Malleable, Iron, Threaded, Screwed and Socketed / Coupled, BS1387, Medium Weight, Pipe / Tube.

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.



Part of our Pipes and Tubes Range

Outside Diameter (OD): 165.1mm
Wall Thickness (WT): 5mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 20.4kg
Construction: Welded
Finish: Red Oxide
Ends: Threaded BSPT both ends with 1x BSP Socket

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler SysteMild Steel / Carbon Steel Pipe.

Alternative terminology:
Malleable, Iron, Threaded, Screwed and Socketed / Coupled, BS1387, Medium Weight, Pipe / Tube.

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.



Part of our Pipes and Tubes Range

Outside Diameter (OD): 165.1mm
Wall Thickness (WT): 5.4mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 21.3kg
Construction: Welded
Finish: Hot Dip Galvanised
Ends: Plain Both Ends

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.



Part of our Pipes and Tubes Range

Outside Diameter (OD): 165.1mm
Wall Thickness (WT): 5.4mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 21.3kg
Construction: Welded
Finish: Red Oxide Painted
Ends: Plain Both Ends

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.



Part of our Pipes and Tubes Range

Outside Diameter (OD): 165.1mm
Wall Thickness (WT): 5.4mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 21.3kg
Construction: Welded
Finish: Self Colour
Ends: Plain Both Ends

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.



Part of our Pipes and Tubes Range

Outside Diameter (OD): 165.1mm
Wall Thickness (WT): 5.4mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 21.3kg
Construction: Welded
Finish: Hot Dip Galvanised
Ends: Threaded BSPT both ends with 1x BSP Socket

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler SysteMild Steel / Carbon Steel Pipe.

Alternative terminology:
Malleable, Iron, Threaded, Screwed and Socketed / Coupled, BS1387, Heavy Weight, Pipe / Tube.

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.


Part of our Pipes and Tubes Range

Outside Diameter (OD): 165.1mm
Wall Thickness (WT): 5.4mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 21.3kg
Construction: Welded
Finish: Red Oxide Painted
Ends: Threaded BSPT both ends with 1x BSP Socket

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler SysteMild Steel / Carbon Steel Pipe.

Alternative terminology:
Malleable, Iron, Threaded, Screwed and Socketed / Coupled, BS1387, Heavy Weight, Pipe / Tube.

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.


Part of our Pipes and Tubes Range

Outside Diameter (OD): 168.3mm
Wall Thickness (WT): 11.7mm
Material: PVC-U
Standard Length: 6 meters
Weight Per Meter: 10.3kg
Finish: Self Colour
Ends: Plain Both Ends

Part of our PVC-U Plastics Pipes and Tubes Range

Closing Range
6" NB - 166.6mm to 170mm

Casing / Locking parts
Stainless Steel

Sealing
EPDM

Sealing sleeve
EPDM

Assumed application
Water -20°C up to +100°C
All qualities of water, waste water, air, solids and chemical products

Temperatures
-30 °C to +100 °C

Medium
Water, air, solids and chemical products, gas, oil, fuel and other hydrocarbs

Pipe Material
Metal to metal pipe joining

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 168.3mm
Wall Thickness (WT): 3.40mm (Sch10)
Material: Stainless
Grade: 304
Standards: ASTM A312
Standard Length: 6 meter Random
Weight Per Meter: 14.04kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 168.3mm
Wall Thickness (WT): 3.40mm (Sch10)
Material: Stainless
Grade: 316
Standards: ASTM A312
Standard Length: 6 meter Random
Weight Per Meter: 14.04kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 168.3mm
Wall Thickness (WT): 18.26mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 160 ASME B36.10 / B36.19
Standard Length: 6 meters
Weight Per Meter: 67.57 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Pipes and Tubes Range

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 168.3mm
Wall Thickness (WT): 7.11mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 40 (Standard Weight) ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 28.23 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 168.3mm
Wall Thickness (WT): 7.11mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19 EN10217-2
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 28.23 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Outside Diameter (OD): 168.3mm
Wall Thickness (WT): 7.11mm (Sch40)
Material: Stainless
Grade: 304
Standards: ASTM A312
Standard Length: 6 meter Random
Weight Per Meter: 28.26kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 168.3mm
Wall Thickness (WT): 7.11mm (Sch40)
Material: Stainless
Grade: 316
Standards: ASTM A312
Standard Length: 6 meters
Weight Per Meter: 28.69
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.



Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 168.3mm
Wall Thickness (WT): 10.97mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 80 (Extra Strong) ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 42.56 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Part of our Stainless Pipes and Tubes Range

Closing Range on Pipe Diamter: 189mm to 212mm
Working Pressure: 16 Bar
Test Pressure: 24 Bar
Adaptor Body & End Ring: Ductile Iron BS EN1563: 2011
Bolt Holes: 12 off
Mutli PCD:

8 Elongated Holes for 8" Table D & PN10
- 19mm Ø on 292mm PCD
- 23mm Ø on 299mm PCD

12 Elongated Holes for 8" PN16
- 19mm Ø on 292mm PCD
- 23mm Ø on 299mm PCD

Tee Bolts: M12 x 125mm

Note: MaxiFit Flange Adaptors DO NOT Resist End Load.

Other compatable flange drillings: ANSI/ASA125 & ANSI/ASA150.

Outside Diameter (OD): 219.1mm
Wall Thickness (WT): 3.76mm (Sch10)
Material: Stainless
Grade: 304
Standards: ASTM A312
Random Length: 5.8 to 7.5 meter Random
Weight Per Meter: 20.1kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 219.1mm
Wall Thickness (WT): 3.76mm (Sch10)
Material: Stainless
Grade: 316
Standards: ASTM A312
Random Length: 5.8 to 7.5 meter Random
Weight Per Meter: 20.1kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 219.1mm
Wall Thickness (WT): 18.26mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 120 ASME B36.10 / B36.19
Standard Length: 6 meters
Weight Per Meter: 90.44 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Pipes and Tubes Range

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 219.1mm
Wall Thickness (WT): 6.35mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule 20 ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 33.2 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Outside Diameter (OD): 219.1mm
Wall Thickness (WT): 8.18mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 40 (Standard Weight) ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 42.55 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Outside Diameter (OD): 219.1mm
Wall Thickness (WT): 8.18mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19 EN10217-2
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 42.55 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Outside Diameter (OD): 219.1mm
Wall Thickness (WT): 8.18mm (Sch40)
Material: Stainless
Grade: 304
Standards: ASTM A312
Standard Length: 6 meter Random
Weight Per Meter: 43.2kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 219mm
Wall Thickness (WT): 8.18mm (Sch40)
Material: Stainless
Grade: 316
Standards: ASTM A312
Standard Length: 6 meters
Weight Per Meter: 43.2
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.



Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 219.1mm
Wall Thickness (WT): 12.7mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 40 (Standard Weight) ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 64.64 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Part of our Stainless Pipes and Tubes Range

Outside diameter: 29mm
Wall Thickness: 1.5mm
Material: Stainless
Grade: 316
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 1.03kg
Construction: Welded

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length


Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 273mm
Wall Thickness (WT): 4.19mm (Sch10)
Material: Stainless
Grade: 304
Standards: ASTM A312
Random Length: 5.8 to 7.5 meter Random
Weight Per Meter: 28.2kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 273mm
Wall Thickness (WT): 4.19mm (Sch10)
Material: Stainless
Grade: 316
Standards: ASTM A312
Random Length: 5.8 to 7.5 meter Random
Weight Per Meter: 28.2kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 273mm
Wall Thickness (WT): 6.35mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule 20 ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 41.76 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Outside Diameter (OD): 273mm
Wall Thickness (WT): 9.27mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 40 (Standard Weight) ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 60.31 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 273mm
Wall Thickness (WT): 9.27mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19 EN10217-2
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 60.29 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Outside Diameter (OD): 273mm
Wall Thickness (WT): 9.27mm (Sch40)
Material: Stainless
Grade: 304
Standards: ASTM A312
Standard Length: 6 meter Random
Weight Per Meter: 61.22kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 273mm
Wall Thickness (WT): 9.27mm (Sch40)
Material: Stainless
Grade: 316
Standards: ASTM A312
Standard Length: 6 meters
Weight Per Meter: 61.22
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.



Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 273mm
Wall Thickness (WT): 15.09mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 80 (True SCH80) ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 96 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 273mm
Wall Thickness (WT): 12.7mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 80 (True SCH80) ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 81.53 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Part of our Stainless Pipes and Tubes Range

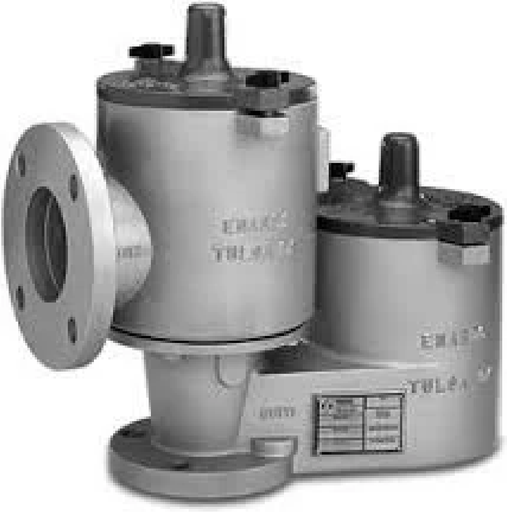

Suits a pipe outside diameter: 273.9 (DN250 / 10" NB)
Process connection: Flanged DN250 PN10 EN1092-1
Outlet connection: Flanged DN250 PN10 EN1092-1
Material : 316L Stainless Steel
PTFE Diaphragm
Set Pressure 2.1 Millibar g ( Minimum )
Set Vacuum - 2.1 Millibar g ( Minimum )

Please consult the factory if the back pressure
is great than 10% of the set pressure

Outside Diameter (OD): 323.8mm
Wall Thickness (WT): 4.55mm (Sch10)
Material: Stainless
Grade: 304
Standards: ASTM A312
Random Length: 5.8 to 7.5 meter Random
Weight Per Meter: 28.2kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 323.8mm
Wall Thickness (WT): 4.55mm (Sch10)
Material: Stainless
Grade: 316
Standards: ASTM A312
Random Length: 5.8 to 7.5 meter Random
Weight Per Meter: 28.2kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 323.9mm
Wall Thickness (WT): 6.35mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule 20 ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 49.71 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Outside Diameter (OD): 323.8mm
Wall Thickness (WT): 10.31mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 40 (True SCH40) ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 79.73 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 323.9mm
Wall Thickness (WT): 10.31mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19 EN10217-2
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 79.71 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Outside Diameter (OD): 323.9mm
Wall Thickness (WT): 9.53mm (Sch40)
Material: Stainless
Grade: 304
Standards: ASTM A312
Standard Length: 6 meter Random
Weight Per Meter: 80.9kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 323.9mm
Wall Thickness (WT): 9.53mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI ASME B36.10 / B36.19 EN10217-2
Schedule: Standard Weight
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 73.86 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Outside Diameter (OD): 323.8mm
Wall Thickness (WT): 9.53mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 73.86 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 323.9mm
Wall Thickness (WT): 12.7mm
Material: Carbon Steel Pipe
Grade: A106 B
Standards: ASTM / ANSI Schedule Extra Strong ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 96 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Part of our Stainless Pipes and Tubes Range

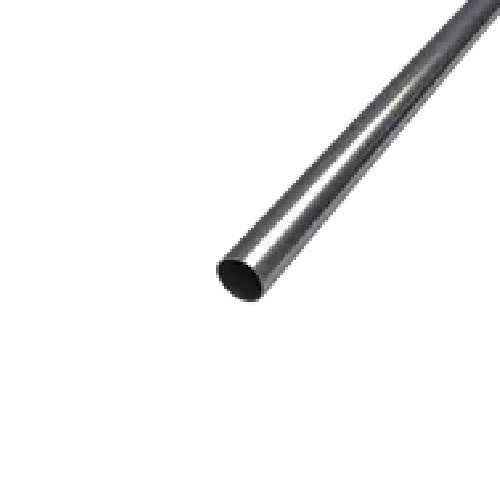

Outside diameter: 35mm
Wall Thickness: 1.5mm
Material: Stainless
Grade: 316
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 1.26kg
Construction: Welded

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length


Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 355.6mm
Wall Thickness (WT): 4.78mm (Sch10)
Material: Stainless
Grade: 304
Standards: ASTM A312
Random Length: 5.8 to 7.5 meter Random
Weight Per Meter: 28.2kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 355.6mm
Wall Thickness (WT): 4.78mm (Sch10)
Material: Stainless
Grade: 316
Standards: ASTM A312
Random Length: 5.8 to 7.5 meter Random
Weight Per Meter: 28.2kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 355.6mm
Wall Thickness (WT): 7.92mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule 20 ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 67.91 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Outside Diameter (OD): 355.6mm
Wall Thickness (WT): 11.13mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 40 (True SCH40) ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 94.55 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 355.6mm
Wall Thickness (WT): 11.13mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19 EN10217-2
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 94.55 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Outside Diameter (OD): 355.6mm
Wall Thickness (WT): 9.53mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19 EN10217-2
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 81.33 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Outside Diameter (OD): 355.6mm
Wall Thickness (WT): 9.53mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 81.33 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Outside diameter: 41mm
Wall Thickness: 1.5mm
Material: Stainless
Grade: 316
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 1.5kg
Construction: Welded

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length


Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 406.4mm
Wall Thickness (WT): 4.78mm (Sch10)
Material: Stainless
Grade: 304
Standards: ASTM A312
Random Length: 5.8 to 7.5 meter Random
Weight Per Meter: 47.29kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 406.4mm
Wall Thickness (WT): 4.78mm (Sch10)
Material: Stainless
Grade: 316
Standards: ASTM A312
Random Length: 5.8 to 7.5 meter Random
Weight Per Meter: 47.29kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 406.4mm
Wall Thickness (WT): 7.92mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule 20 ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 77.83 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Outside Diameter (OD): 406.4mm
Wall Thickness (WT): 12.7mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 40 (True SCH40) ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 123.31 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 406.4mm
Wall Thickness (WT): 12.7mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19 EN10217-2
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 123.31 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Outside Diameter (OD): 406.4mm
Wall Thickness (WT): 9.53mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19 EN10217-2
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 93.27kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Outside Diameter (OD): 406.4mm
Wall Thickness (WT): 9.53mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 93.27 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 457mm
Wall Thickness (WT): 7.92mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule 20 ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 87.71 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Outside Diameter (OD): 457mm
Wall Thickness (WT): 14.27mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19 EN10217-2
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 155.81 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Outside Diameter (OD): 457mm
Wall Thickness (WT): 9.53mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19 EN10217-2
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 105.17kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Outside diameter: 53mm
Wall Thickness: 1.5mm
Material: Stainless
Grade: 316
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 1.94kg
Construction: Welded

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length


Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 508mm
Wall Thickness (WT): 9.53mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule 20 ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 117.15 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Outside Diameter (OD): 508mm
Wall Thickness (WT): 15.09mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19 EN10217-2
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 183.43 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Outside Diameter (OD): 457mm
Wall Thickness (WT): 9.53mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19 EN10217-2
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 117.15kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Outside Diameter (OD): 610mm
Wall Thickness (WT): 9.53mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule 20 ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 141.12 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Outside Diameter (OD): 610mm
Wall Thickness (WT): 17.48mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19 EN10217-2
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 255.43 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Outside Diameter (OD): 610mm
Wall Thickness (WT): 9.53mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19 EN10217-2
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 141.12kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Outside diameter: 70mm
Wall Thickness: 2.0mm
Material: Stainless
Grade: 316
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 3.43kg
Construction: Welded

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length


Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 711mm
Wall Thickness (WT): 12.7mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule 20 ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 218.71 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Outside Diameter (OD): 711mm
Wall Thickness (WT): 9.53mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Standard Weight ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 164.86 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Outside diameter: 85mm
Wall Thickness: 2.0mm
Material: Stainless
Grade: 316
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 4.16kg
Construction: Welded

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length


Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 813mm
Wall Thickness (WT): 9.53mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Standard Weight ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 188.83 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

M8 & M10 Metric Dual Threaded Backplate
Material: Mild Steel
Finish: Zinc Plated

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, EN10255, EN 10242 & EN 10226-1


Alternative terminology:
Threaded, Mild Steel, Zinc Plated, BZP, ZP, Female, Base plate, Backplate, Baseplate, Munsen Ring, Pipe Clip, Munson, Tube Clip, Screwed, Fittings.

M8 & M10 Metric Dual Threaded Backplate
Material: Stainless Steel 316



Alternative terminology:
Threaded, Stainless Steel, 304, A4, Female, Base plate, Backplate, Baseplate, Munsen Ring, Pipe Clip, Munson, Tube Clip, Screwed, Fittings.

Yellow Ochre (08C36) Semi-Gloss Gas identification paint.
5 Litre Tin Gas Pipeline Identification – Yellow Ochre Gas Pipe Paint BS 08 C 35
Colour to BS 1710 Industry Standard.

Semi-Gloss Primer & Top Coat combined.

Intended for metallic / steel surfaces.

Outside diameter: 1/2" (12.7mm)
Wall Thickness: 1.5mm
Material: Stainless
Grade: 316
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 0.51kg
Construction: Welded (un-annealed, Bead rolled, internal weld bead Ra less than 1.6µm.)

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length


Part of our Stainless Pipes and Tubes Range

Outside diameter: 3/4" (19.05mm)
Wall Thickness: 1.5mm
Material: Stainless
Grade: 316
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 0.81kg
Construction: Welded (un-annealed, Bead rolled, internal weld bead Ra less than 1.6µm.)

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length


Part of our Stainless Pipes and Tubes Range

Outside diameter: 1" (25.4mm)
Wall Thickness: 1.5mm
Material: Stainless
Grade: 304
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 0.99kg
Construction: Welded (un-annealed, Bead rolled, internal weld bead Ra less than 1.6µm.)

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length


Part of our Stainless Pipes and Tubes Range

Outside diameter: 1" (25.4mm)
Wall Thickness: 1.5mm
Material: Stainless
Grade: 316
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 0.99kg
Construction: Welded (un-annealed, Bead rolled, internal weld bead Ra less than 1.6µm.)

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length


Part of our Stainless Pipes and Tubes Range

Outside diameter: 1.1/4" (31.75mm)
Wall Thickness: 1.5mm
Material: Stainless
Grade: 316
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 1.23kg
Construction: Welded (un-annealed, Bead rolled, internal weld bead Ra less than 1.6µm.)

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length


Part of our Stainless Pipes and Tubes Range

Outside diameter: 1.1/2" (38.1mm)
Wall Thickness: 1.5mm
Material: Stainless
Grade: 304
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 1.51kg
Construction: Welded (un-annealed, Bead rolled, internal weld bead Ra less than 1.6µm.)

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length


Part of our Stainless Pipes and Tubes Range

Outside diameter: 1.1/2" (38.1mm)
Wall Thickness: 1.5mm
Material: Stainless
Grade: 316
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 1.51kg
Construction: Welded (un-annealed, Bead rolled, internal weld bead Ra less than 1.6µm.)

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length


Part of our Stainless Pipes and Tubes Range

1/2" BSPP Threaded Backplate
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1




Alternative terminology:
Malleable, Iron, Threaded, Pipe Ring, Base plate, Backplate, Baseplate, Munsen Ring, Pipe Clip, Munson, Tube Clip, Screwed, Fittings.

1/4" BSPP Threaded Backplate
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1




Alternative terminology:
Malleable, Iron, Threaded, Pipe Ring, Base plate, Backplate, Baseplate, Munsen Ring, Pipe Clip, Munson, Tube Clip, Screwed, Fittings.

1/4" BSPP Threaded Backplate
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1




Alternative terminology:
Malleable, Iron, Threaded, Pipe Ring, Base plate, Backplate, Baseplate, Munsen Ring, Pipe Clip, Munson, Tube Clip, Screwed, Fittings.

108MM x 2.0MM Stainless steel pressfit pipe in accordance with EN10312 Series 2.
316L grade suitable for potable water, heating, and industrial applications.
Compatible with M profile fittings and EPDM seals.

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 12.70mm (1/2" OD)
Wall Thickness (WT): 0.91mm
Material: Stainless
Grade: 316
Standards: ASTM A269
Standard Length: 3 meter Random
Weight Per Meter: 0.34kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range

12mm OD Metric Standpipe
x
1/2" BSPP Male
Compression: Twin Ferrule
Material: Stainless
Grade: 316

12mm OD Metric Standpipe
x
1/4" BSPP Male
Compression: Twin Ferrule
Material: Stainless
Grade: 316

139.7MM x 2.0MM Stainless steel pressfit pipe in accordance with EN10312 Series 2.
316L grade suitable for potable water, heating, and industrial applications.
Compatible with M profile fittings and EPDM seals.

Part of our Stainless Pipes and Tubes Range
