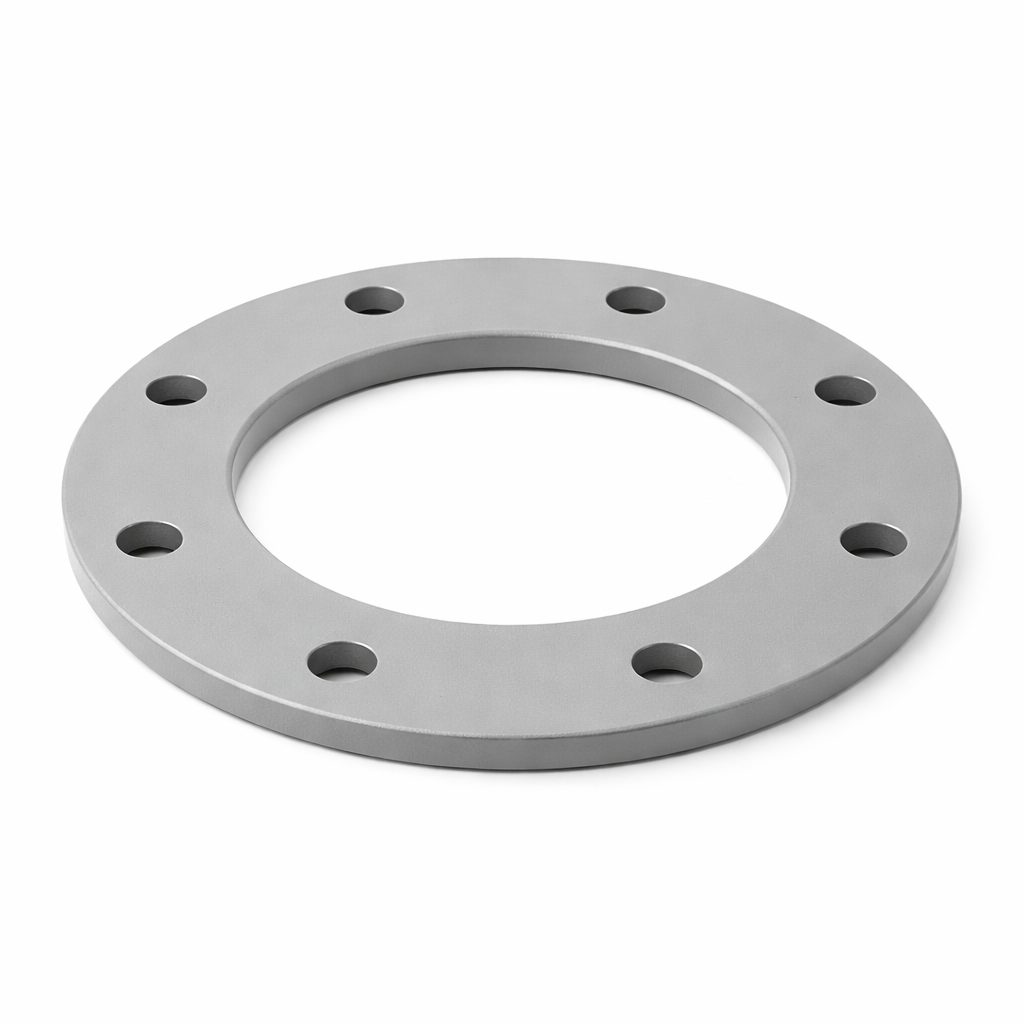

DN100 PN16 RED THICK (BORED 104MM) METRIC PPA GREY BACKING FLANGE

DN100 PN16 RED THICK (BORED 104MM) METRIC PPA GREY BACKING FLANGE

Technical Specification
Product Code
SS-MET-FLA-BF-PPA-P16-100-104
Outside Diameter (mm)
104.00mm
Size (Inch)
4"
Weight
1.7 KG
https://www.integraflow.co.uk/web/image/product.template/27640/image_1920?unique=4047227
(0 review)

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Contact us for pricing

(£ 0.00 / each)
Product details
Weight 1.70 KG per item
Available to order Sign up for trade prices
  • Outside Diameter (mm)
  • Size (Inch)

This combination does not exist.

Suits an outside diameter (OD) of: 104mm

Material: MS

Grade: S235 JR

Standards: EN1092-1

Flange Face: Flat

Bolt Holes: 8 off to suit M16 Bolts

PCD: 180mm

Flange Diameter: 220mm

Flange Thickness: 10mm

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Internal Reference: SS-MET-FLA-BF-PPA-P16-100-104

Specifications

Outside Diameter (mm) 104.00mm
Size (Inch) 4"
