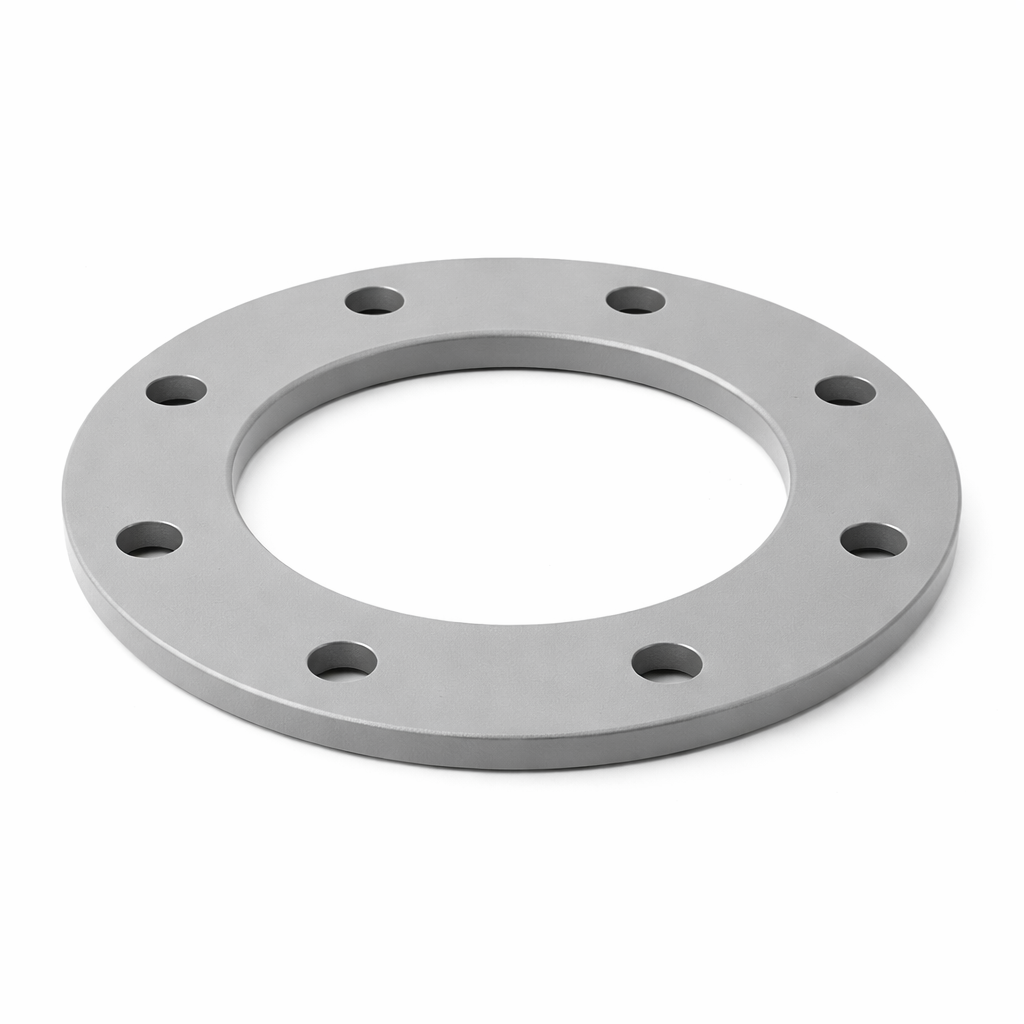

DN150 PN16 RED THICK (BORED 156MM) METRIC PPA GREY BACKING FLANGE
Technical Specification
Product Code
SS-MET-FLA-BF-PPA-P16-150-156
Outside Diameter (mm)
154.00mm
Weight
2.87 KG
Suits an outside diameter (OD) of: 154mm
Material: MS
Coating: Grey PPA
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat
Bolt Holes: 8 off to suit M20 Bolts
PCD: 240mm
Flange Diameter: 285mm
Flange Thickness: 10mm
Internal Reference:
SS-MET-FLA-BF-PPA-P16-150-156
Specifications
| Outside Diameter (mm) | 154.00mm |
