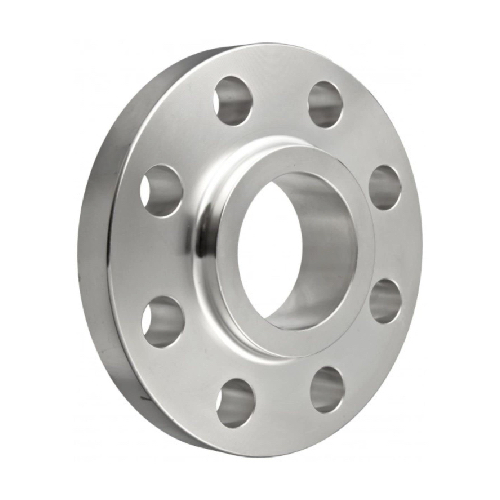

DN100 (4" NB) ASA1500 RF BOSSED SLIP ON FLANGE SS 304
Technical Specification
Product Code
SS-NB-FLA-100-RF-SOB-ASA1500-304
Size (Inch)
4"
Outside Diameter (mm)
114.30mm
Weight
27.8 KG
Flange outside diameter: 311.1mm (O)
Flange thickness: 53.8mm (C)
Pitch Circle Diameter (PCD): 241.3mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 8 off 35.0mm diameter
Bore Diameter: 116.0mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 1500LB, SOB
Internal Reference:
SS-NB-FLA-100-RF-SOB-ASA1500-304
Specifications
| Size (Inch) | 4" |
| Outside Diameter (mm) | 114.30mm |
