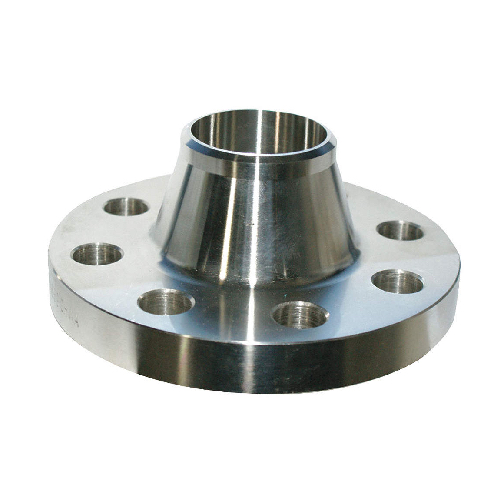

DN100 (4" NB) SCHEDULE 40S ASA150 WELD NECK FLANGE SS 304

DN100 (4" NB) SCHEDULE 40S ASA150 WELD NECK FLANGE SS 304

Technical Specification
Product Code
SS-NB-FLA-100-RF-WN-S40-A150-304
Size (Inch)
4"
Outside Diameter (mm)
114.30mm
Weight
9.0 KG
https://www.integraflow.co.uk/web/image/product.template/18256/image_1920?unique=bb3896f
(0 review)

£ 164.34 164.34 GBP £ 164.34 Tax Excluded

Contact us for pricing

(£ 0.00 / each)
Product details
Weight 9.00 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 228.6mm
Flange thickness (C): 23.8mm
Hub length (X): 114.3mm
Neck height (A): 105.0mm
Pitch circle diameter (K): 190.5mm
Hub base diameter (Y): 76.2mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 157.2mm
Number of bolt holes: 8
Material: 304 Stainless Steel
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Internal Reference: SS-NB-FLA-100-RF-WN-S40-A150-304

Specifications

Size (Inch) 4"
Outside Diameter (mm) 114.30mm
