  3. DN100 (4" NB) SCHEDULE 80S ASA150 WELD NECK FLANGE SS 304
Website List 200 (IGF)
DN100 (4" NB) SCHEDULE 80S ASA150 WELD NECK FLANGE SS 304

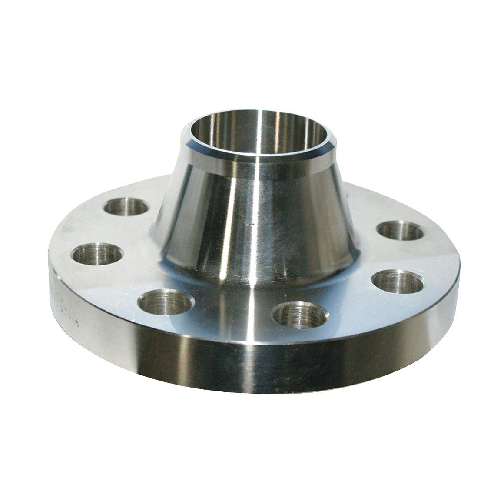

DN100 (4" NB) SCHEDULE 80S ASA150 WELD NECK FLANGE SS 304

Technical Specification
Product Code
SS-NB-FLA-100-RF-WN-S80-A150-304
Size (Inch)
4"
Outside Diameter (mm)
114.30mm
Weight
9.0 KG
https://www.integraflow.co.uk/web/image/product.template/18282/image_1920?unique=bb3896f
(0 review)

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Contact us for pricing

(£ 0.00 / each)
Product details
Weight 9.00 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 228.6mm
Flange thickness (C): 23.8mm
Hub length (X): 114.3mm
Neck height (A): 105.0mm
Pitch circle diameter (K): 190.5mm
Hub base diameter (Y): 76.2mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 157.2mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Internal Reference: SS-NB-FLA-100-RF-WN-S80-A150-304

Specifications

Size (Inch) 4"
Outside Diameter (mm) 114.30mm
