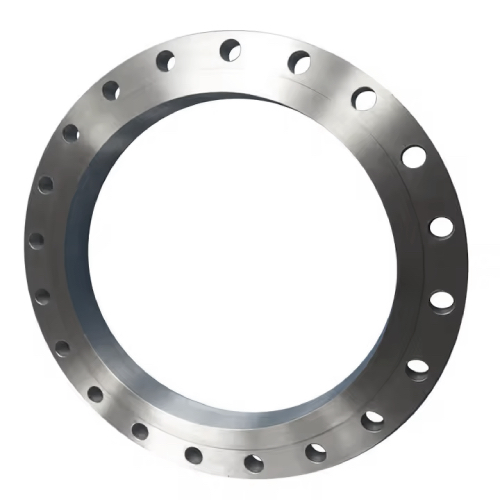

DN1000 PN16 RF SLIP ON PLATE FLANGE SS 316
Technical Specification
Product Code
SS-NB-FLA-1000-RF-SO-P16-316
Weight
246.37 KG
Flange inside diameter of: 1022.0mm (B1)
Flange overall diameter: 1255mm (D)
PCD: 1170mm (K)
Bolt Holes: 28 off 42mm diameter (L)
Flange Thickness: 90mm (C1)
Diameter of Raised Face (RF): 1080mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO
Internal Reference:
SS-NB-FLA-1000-RF-SO-P16-316
