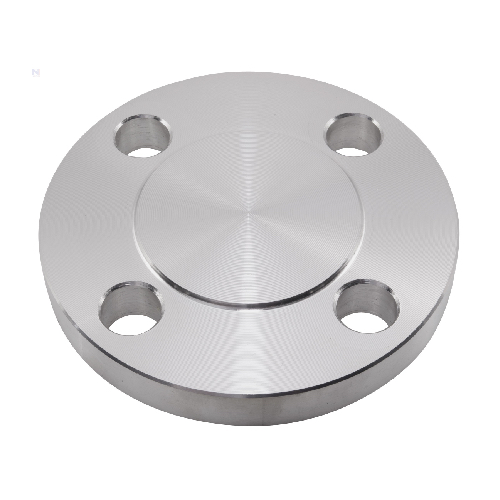

DN15 (1/2" NB) ASA150 RF BLIND FLANGE SS 316
Outside diameter (O): 88.9mm
Flange thickness (C): 11.1mm
Pitch circle diameter (K): 60.4mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 35.0mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced
| Size (Inch) | 1/2" |
| Outside Diameter (mm) | 21.30mm |
Internal Reference:
SS-NB-FLA-15-RF-BLA-150-316
Specifications
| Size (Inch) | 1/2" |
| Outside Diameter (mm) | 21.30mm |
