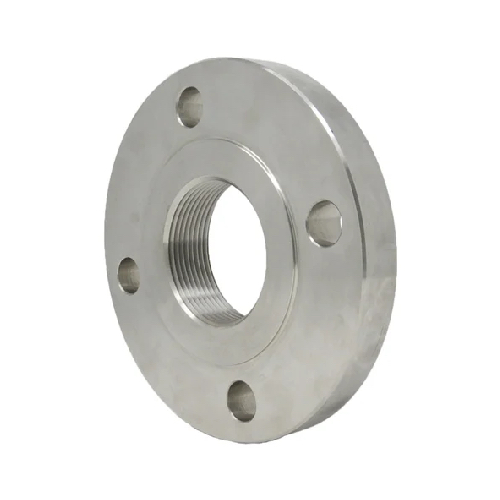

DN15 (1/2" NB) PN10/PN16/PN25/PN40 RF BSPP THREADED FLANGE SS 316

DN15 (1/2" NB) PN10/PN16/PN25/PN40 RF BSPP THREADED FLANGE SS 316

Technical Specification
Product Code
SS-NB-FLA-15-RF-SCR-P10-P16-P25-P40-SS-316
Size (Inch)
1/2"
Outside Diameter (mm)
21.30mm
Weight
0.72 KG
https://www.integraflow.co.uk/web/image/product.template/18226/image_1920?unique=335cd53
(0 review)

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Contact us for pricing

(£ 0.00 / each)
Product details
Weight 0.72 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange outside diameter: 95mm (D)
Flange thickness: 16mm (C2)
Pitch Circle Diameter (PCD): 65mm (K)
Flange hub height: 22mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 1/2"
Bolt Holes: 4 off M12 bolts
Material: Stainless Steel
Grade: 316

Standards: EN 1092-1
Pressure Rating: PN16
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN16

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Internal Reference: SS-NB-FLA-15-RF-SCR-P10-P16-P25-P40-SS-316

Specifications

Size (Inch) 1/2"
Outside Diameter (mm) 21.30mm
