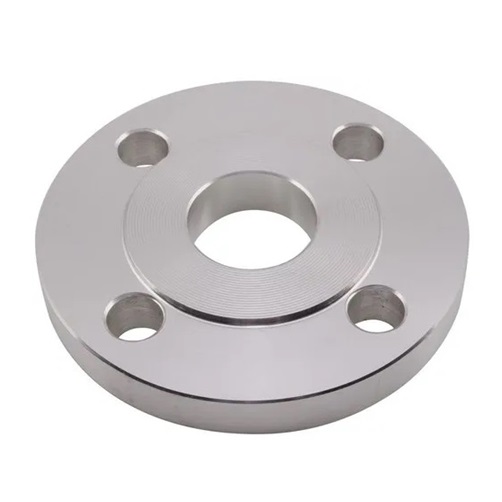

DN15 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE SS 316

DN15 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE SS 316

Product code: SS-NB-FLA-15-RF-SO-P10-P16-P40-316

(0 review)
Order other sizes
Product description

Flange inside diameter of: 22.0mm (B1)
Flange overall diameter: 95mm (D)
PCD: 65mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 14mm (C1)
Diameter of Raised Face (RF): 40mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

  • Material
  • Grade
  • Outside Diameter (mm)
  • Nominal Size
  • Pressure Rating
  • Flange Face

Availability: Call for prices

Call for prices
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Material Stainless Steel
Grade 316
Outside Diameter (mm) 21.30mm
Nominal Size DN15
Pressure Rating PN10 / PN16 / PN25 / PN40
Flange Face Raised face (RF)
Contact Us
Material: Stainless Steel
Grade: 316
Outside Diameter (mm): 21.30mm
Nominal Size: DN15
Pressure Rating: PN10 / PN16 / PN25 / PN40
Flange Face: Raised face (RF)

Internal Reference: SS-NB-FLA-15-RF-SO-P10-P16-P40-316
