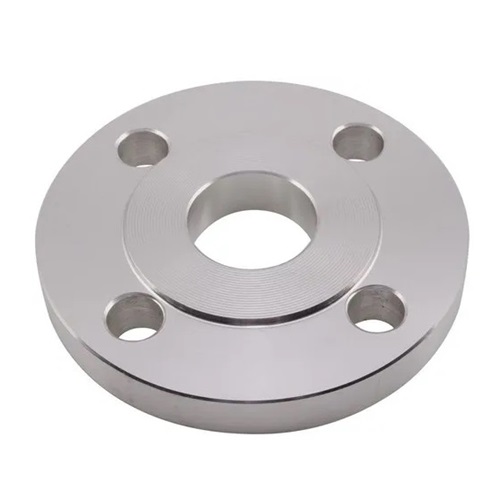

DN15 (1/2" NB) PN6 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 22.0mm (B1)
Flange overall diameter: 80mm (D)
PCD: 55mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 12mm (C1)
Diameter of Raised Face (RF): 40mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO
| Size (Inch) | 1/2" |
| Outside Diameter (mm) | 21.30mm |
Internal Reference:
SS-NB-FLA-15-RF-SO-P6-316
Specifications
| Size (Inch) | 1/2" |
| Outside Diameter (mm) | 21.30mm |
