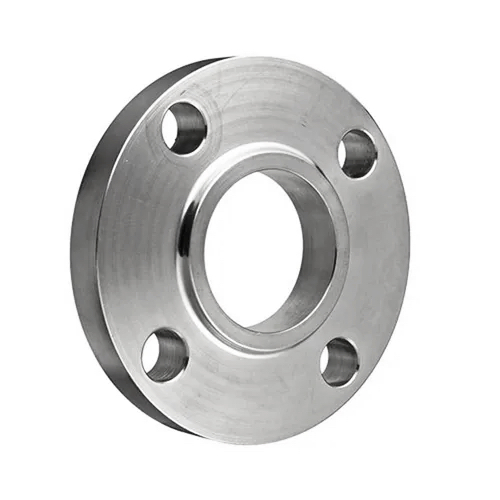

DN15 (1/2" NB) ASA300 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 95.2mm (O)
Flange thickness: 14.2mm (C)
Flange hub height: 22.3mm (Y)
Pitch Circle Diameter (PCD): 66.5mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 22.3mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB
| Size (Inch) | 1/2" |
| Outside Diameter (mm) | 21.30mm |
Internal Reference:
SS-NB-FLA-15-RF-SOB-ASA300-304
Specifications
| Size (Inch) | 1/2" |
| Outside Diameter (mm) | 21.30mm |
