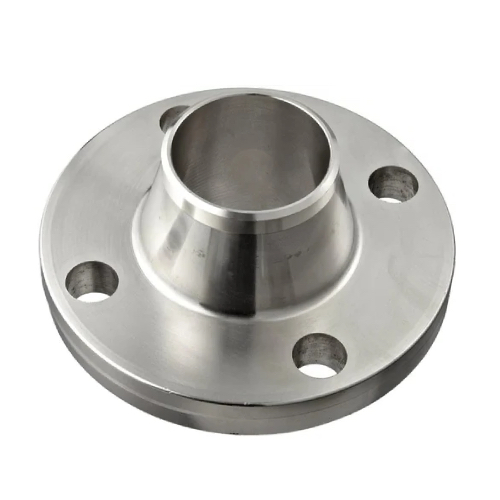

DN15 (1/2 NB) SCHEDULE 10S ASA300 WELD NECK FLANGE SS 304

DN15 (1/2 NB) SCHEDULE 10S ASA300 WELD NECK FLANGE SS 304

Product code: SS-NB-FLA-15-RF-WN-S10-300-304

(0 review)
Order other sizes
Product description
Outside diameter (O): 95.2mm
Flange thickness (C): 14.2mm
Hub height (X): 38.1mm
Length through hub (A): 21.3mm
Bolt circle diameter (K): 66.5mm
Overall height (Y): 52.3mm
Raised face thickness (RF): 1.5mm
Bore (B): 35.0mm
Number of bolt holes: 4
Bolt hole diameter: 15.7mm
Approx. weight: 0.9kg
  • Material
  • Grade
  • Outside Diameter (mm)
  • Nominal Size
  • Schedule
  • Pressure Rating

Availability: Call for prices

Call for prices
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Material Stainless Steel
Grade 304
Outside Diameter (mm) 21.30mm
Nominal Size DN15
Schedule Schedule 10S
Pressure Rating Class 300
Contact Us
Material: Stainless Steel
Grade: 304
Outside Diameter (mm): 21.30mm
Nominal Size: DN15
Schedule: Schedule 10S
Pressure Rating: Class 300

Internal Reference: SS-NB-FLA-15-RF-WN-S10-300-304
